Receptacle Housing for LEL Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 1
| Article Number | 01R-LELSS-GA-TF (HF) |
| Number Of Contacts | 1 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |
| General Description | Single-Circuit Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

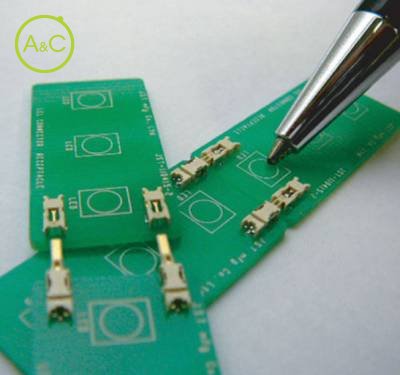

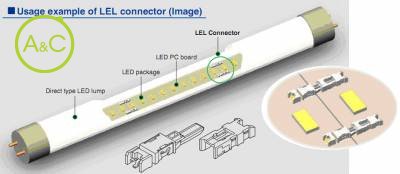

JST introduces the new LEL connector series to its existing range of LED connectors. This single circuit board-to-board connector has a mating height of 1.2mm, therefore providing a low profile and space saving solution to the LED lighting industry.
This two piece (plug and receptacle) SMT connector offers a simple and direct connection between PC boards and has a mechanism for preventing wrong insertion. These connectors are supplied in tape and reel packaging enabling high speed processing, and are halogen free and RoHS compliant.
Absorption misalignment mechanism
Low profile and space saving design
Mechanism for preventing wrong insertion
The gold plating is conducted due to the long life of LED lighting equipment
RoHS Compliant
