Receptacle AWG#28 Green
- KRD CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
| Article Number | 02KR-D8M-P |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 03KR-D8M-P |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 04KR-D8M-P |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 05KR-D8M-P |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 06KR-D8M-P |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 07KR-D8M-P |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 08KR-D8M-P |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 09KR-D8M-P |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 10KR-D8M-P |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 11KR-D8M-P |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 12KR-D8M-P |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 13KR-D8M-P |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 14KR-D8M-P |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 15KR-D8M-P |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Article Number | 16KR-D8M-P |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable IDC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

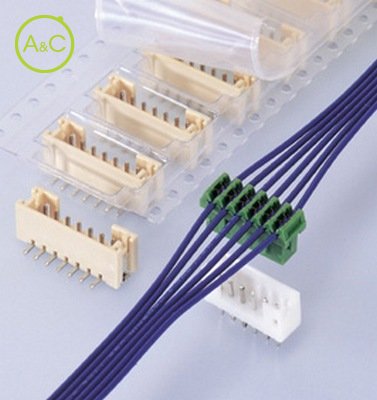

This 2.0mm (.079") pitch insulation displacement connector is another version of the NRD connector for printed circuit boards.
The KRD connector allows daisy chaining and is very useful in simplifying connection systems in electronic equipment.
Daisy chain connection

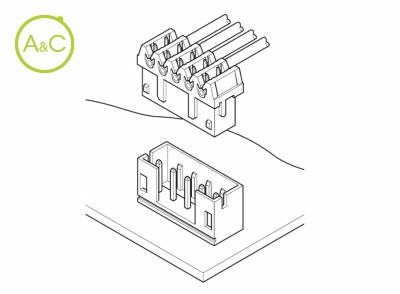

The connection shown in the figure is commonly called "daisy chain connections" or "through connections". With these simple connections, many signals can be bussed to many different printed circuit boards. The KRD connector is constructed to allow such daisy chain connectors.
Twin slot insulation displacement section
The insulation displacement section connected to the wire consists of twin tin-plated slots for superb reliability.
Distortion resistant construction
The header is shrouded and thus protects the receptacle from damage that could be caused by mating the connectors at an angle or otherwise mismating the connectors.
Interchangability
The shrouded header is interchangeable with the PH crimp style connectors and or KR and CR insulation displacement connectors.
Low profile design - a mere 9.0mm (.354") high from the PC board surface
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
