Socket for XSR Connector

XSR CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	02XSR-36S
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	04XSR-36S
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	06XSR-36S
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	10XSR-36S
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	16XSR-36S
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20XSR-36S
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	22XSR-36S
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

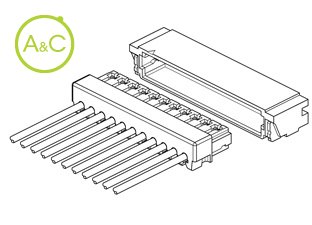

This is the world's smallest 0.6mm pitch ID connector for deSCrete wires. This wire to board miniaturized connector has a mounting height of 1.45mm and depth of 3.0mm. Space saving Twin U-slot insulation displacement section New strain relief structure Suitable for fine wires Applicable to automatic ID machines Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
