Receptacle AWG#30 Natural/Grey
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 2
- 3
- 9
- 13
Article Number | 02ZR-3H-P |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.5mm Pitch Disconnectable Crimp Style |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.50 mm |
Rated Current (ac/dc) | 0.7 A |
Rated Voltage (ac/dc) | 50 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

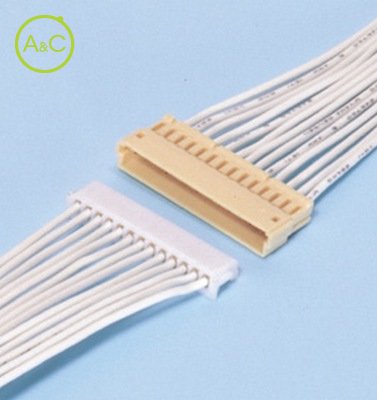

1.5mm (.059") pitch connectors allow higher densities.
Compact design
Precision stamping technology is applied to produce mate pins that are only 0.5mm (.020") in diameter. This results in ultracompact wire-to-wire connectors that are a mere 3.6mm (.142") thick. When used with ZH crimp style connectors, high density mounting with a total connector length of only 9.2mm (.362") is possible.
Housing-to-terminal locks
Spring action housing-to-terminal locks are an inherent part of the housing, and assure smooth contact insertion and firm contact retention.

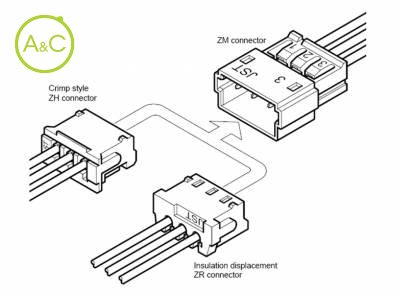

Both crimp style and insulation displacement receptacles can be used
Both ZH crimp style and ZR insulation displacement connector receptacles can be accommodated by the ZM connector. Thus, mounting designs can be matched to current "Z" series connector use.
Fully shrouded header resists "rocking" during mating
This fully shrouded header provides protection from rocking the connector halves back and forth during mating and unmating.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
