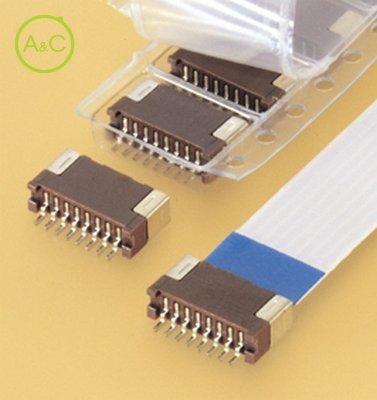

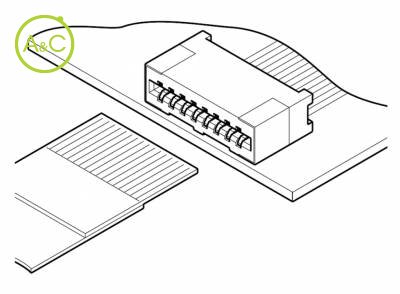

The FMS series connectors are designed for surace mounting (SMT) and to meet the demand for high-density packaging. They are minature connectors with a height of only 2.8m (.110"), and can be supplied packaged in embossed tape to facilitate automatic mounting. Compact The connector measures 1.0mm (.039") in pitch, 2.8mm (.110") in mounting height, and 6.3mm (.248") in width. Double-sided contact This connector has highly resilient phosphor bronze contacts, each of which has two independant mating spring members that ensure continuity even when subjected to severe vibration. Because each of the contacts simultaneously mates with both sides of the FFC, the engineer has greater freedom in designing his circuitry. Simple snap-in action The FFC is securely connected by simply inserting it's leads into the connector. SMT configuration It's housing is made of heat resistant resin so that it is not adversly affected during reflow soldering. Because of it's tiny size and ability to be surface mounted, this connector meets the demand for high-density mounting of components inside electronic products. Solder tabs This connector also features reinforcing solder tabs to prevent lifting of the connector during mating and unmating. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
