Connector Reverse Type
- FLH CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 4
- 6
- 7
- 8
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 22
- 24
- 28
- 30
- 32
- 34
- 40
| Article Number | 04FLH-RSM1-TB |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 06FLH-RSM1-TB |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 07FLH-RSM1-TB |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 08FLH-RSM1-TB |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 10FLH-RSM1-TB |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 11FLH-RSM1-TB |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 12FLH-RSM1-TB |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 13FLH-RSM1-TB |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 14FLH-RSM1-TB |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 15FLH-RSM1-TB |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 16FLH-RSM1-TB |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 17FLH-RSM1-TB |
| Number Of Contacts | 17 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 18FLH-RSM1-TB |
| Number Of Contacts | 18 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 19FLH-RSM1-TB |
| Number Of Contacts | 19 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 20FLH-RSM1-TB |
| Number Of Contacts | 20 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 22FLH-RSM1-TB |
| Number Of Contacts | 22 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 24FLH-RSM1-TB |
| Number Of Contacts | 24 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 28FLH-RSM1-TB |
| Number Of Contacts | 28 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 30FLH-RSM1-TB |
| Number Of Contacts | 30 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 32FLH-RSM1-TB |
| Number Of Contacts | 32 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 34FLH-RSM1-TB |
| Number Of Contacts | 34 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 40FLH-RSM1-TB |
| Number Of Contacts | 40 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Ultra thin with the mounting height of only 1.2mm (.047"), yet applicable to 0.3mm (.012") thick FPCs. In-line surface mount tails. The housing is made of heat resistant resin to allow reflow soldering. The connector is available in either the normal or reverse configurations.
Ultra thin design
The FLH connector is the ZIF type ultra thin connector, with the mounting height of only 1.2mm (.047"). Applicable to 0.3mm (.012") thick FPC's.
Heat resistant design suitable for surface mounting
The housing is made of heat resistant resin to allow reflow soldering.
In-line surface mounting
Has an in-line surface mount tails for easy inspection.
Two types of connectors

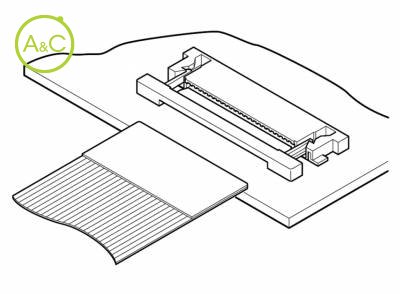

The connector is available in either the normal or reverse configurations. The FPC is positioned with it's mating surfaces facing upward for the normal configured connector, while the reverse configuration requires that the FPC be positioned with it's mating surfaces facing down. The engineer has greater freedom in designing his circuitry.

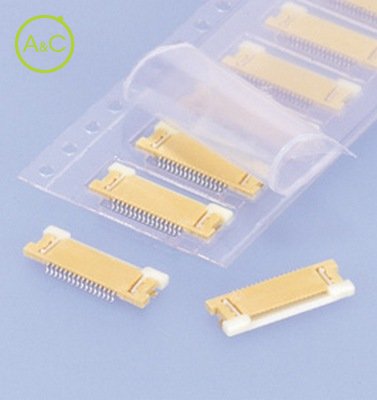

Embossed tape for automatic mounting
The FLH connector can be packaged in embossed tape for automatic mounting.
Specifications
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
