Zurück zur Projektübersicht
Download Datenblatt

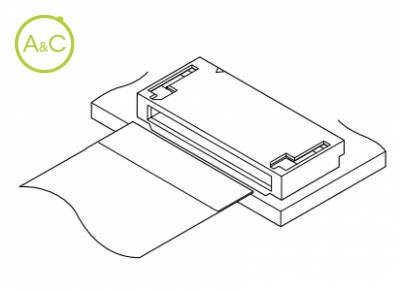

Female Connector for FZ Connector
- FZ CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 5
- 6
- 8
- 10
- 11
- 12
- 13
- 14
- 16
- 20
- 24
Article Number | 05FZ-SM1-GAN-TB |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 06FZ-SM1-GAN-TB |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 08FZ-SM1-GAN-TB |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 10FZ-SM1-GAN-TB |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 11FZ-SM1-GAN-TB |
Number Of Contacts | 11 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 12FZ-SM1-GAN-TB |
Number Of Contacts | 12 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 13FZ-SM1-GAN-TB |
Number Of Contacts | 13 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 14FZ-SM1-GAN-TB |
Number Of Contacts | 14 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 16FZ-SM1-GAN-TB |
Number Of Contacts | 16 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 20FZ-SM1-GAN-TB |
Number Of Contacts | 20 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 24FZ-SM1-GAN-TB |
Number Of Contacts | 24 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.4mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.40 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
This is a very small surface mount type Non-ZIF 0.4mm pitch connector with a height of 1.0mm and depth of 3.0mm.
Double-sided contact structure
RoHS Compliant
