Female Connector for FH Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 6
- 11
- 14
- 20
Article Number | 06FH-SM1-TB |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch Non-ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

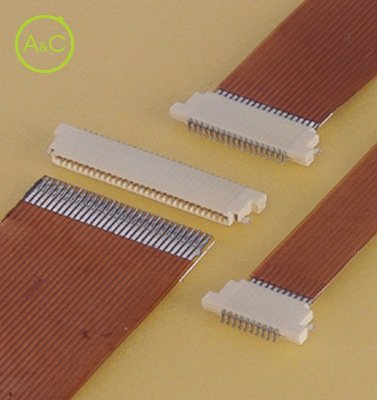

With a height of just 1.2mm and depth of 3.55mm, this 0.5mm pitch FPC connector is extremely low profile, which makes it an ideal connector for use in small and restricted environments.
Featuring double-sided internal contact points, to facilitate top and bottom PCB placement, and using heat resistant materials. This connector is not only very universal, but is more than suitable for use in high re-flow temperature environments associated with lead free soldering.
Double-sided contact
The contact is double-sided, thus providing reliable connection with FPC.

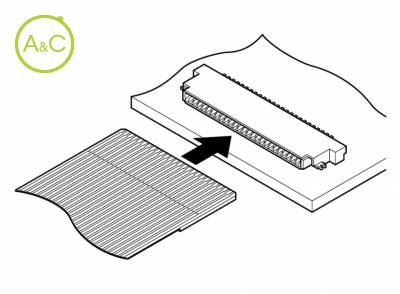

Applicable to standard FPC
0.3±0.05mm (.012"±.002") thick standard FPC can be used.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
