Connector Reverse Type
- FLZT CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 6
- 8
- 10
- 14
- 15
- 16
- 20
- 22
- 24
- 28
- 30
- 37
- 40
- 42
Article Number | 06FLZT-RSM1-TF |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 08FLZT-RSM1-TF |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 10FLZT-RSM1-TF |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 14FLZT-RSM1-TF |
Number Of Contacts | 14 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 15FLZT-RSM1-TF |
Number Of Contacts | 15 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 16FLZT-RSM1-TF |
Number Of Contacts | 16 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 20FLZT-RSM1-TF |
Number Of Contacts | 20 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 22FLZT-RSM1-TF |
Number Of Contacts | 22 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 24FLZT-RSM1-TF |
Number Of Contacts | 24 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 28FLZT-RSM1-TF |
Number Of Contacts | 28 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 30FLZT-RSM1-TF |
Number Of Contacts | 30 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 37FLZT-RSM1-TF |
Number Of Contacts | 37 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 40FLZT-RSM1-TF |
Number Of Contacts | 40 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 42FLZT-RSM1-TF |
Number Of Contacts | 42 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector For FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

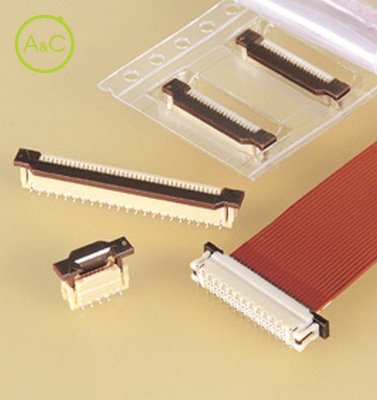

Vertical 0.5mm (.020") pitch ZIF type connector with staggered solder tails. Both normal type and reverse type are available.
Zero insertion force mechanism
ZIF mechanism, that increases wear resistance and extends the connector's mating life, has been adopted.
Two types of connectors

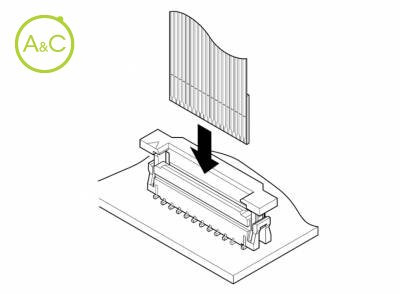

The connector is available in either normal or reverse configurations. The FPC is positioned with it's mating surfaces facing upward for the normal configured connector, while the reverse configuration requires that the FPC be positioned with it's mating surfaces facing down. The engineer has greater freedom in designing his circuitry.
Heat resistance design suitable for surface mounting
The housing is made of heat resistant plastic to allow reflow soldering.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
