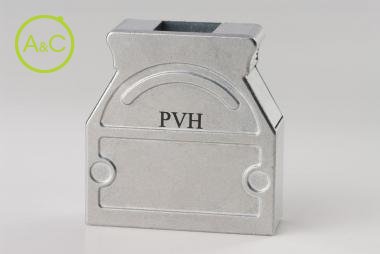

Diecast hood with 2-3 cable outputs slide-/clip locking
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
Number Of Poles
- 9
- 15
- 25
- 37
- 50
Article Number | 07 09 DC 000 |
Number Of Contacts | 9 |
Upper Temperature | +90 °C |
Lower Temperature | -20 °C |
Remark | Crimping flange must be ordered seperately |
Material | zn alloy |
Extra Information | Easy assembling by pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjuntion with crimp flange Multi opening possible |
Locking Style | Slide lock Clip lock |
Cable Exit | Straight 180° Angled: 2x30° |
Cable Fixing | Crimp flange |
Cable Diameter Crimping Flange | 2,7-8,7 |
Material/surface Locking Screws Diecast | ST tin plated |
Material/surface Cover Screws | ST Zinc plated |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
