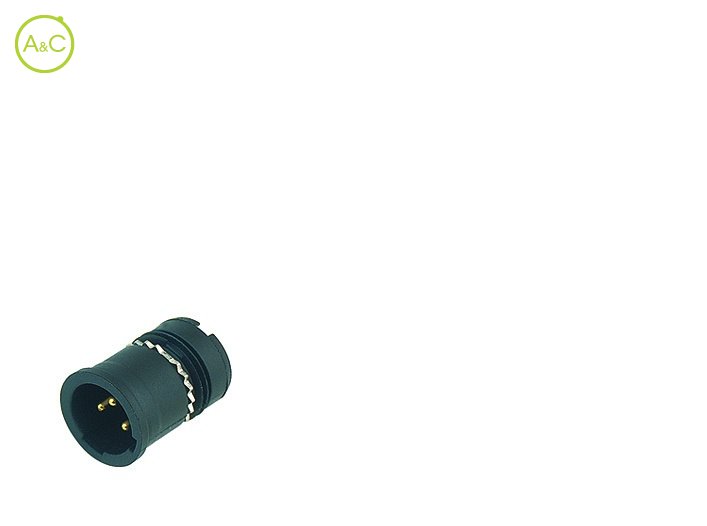

Male receptacle

  • with ground ring, solder, contact surface gold
  • UL-approval

Number Of Poles

  • 2+PE
Article Number 09 2431 09 03

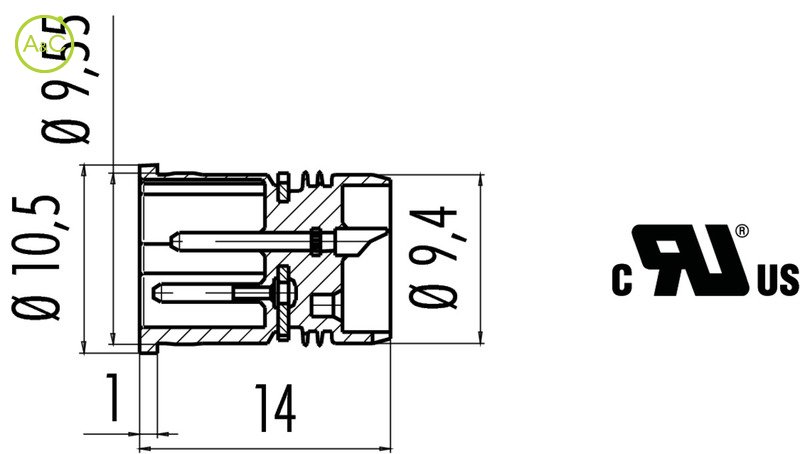

Connector Diameter 10.5 mm
Number Of Contacts 2+PE contacts
Connector Locking System Screw (M12-US)
Termination Solder
Wire Section 0.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
