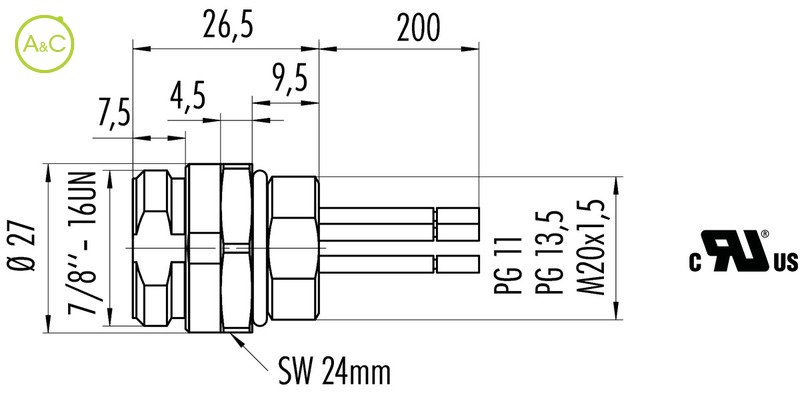

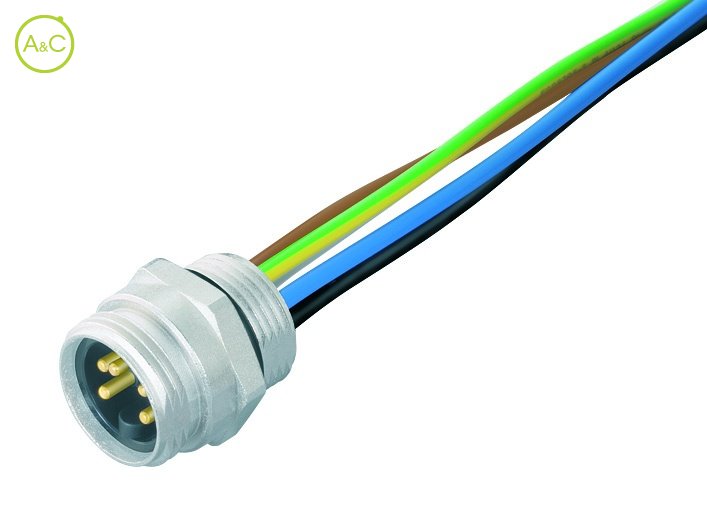

Male panel mount connector

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

Article Number	09 2447 310 03	09 2447 300 03	09 2447 320 03
Connector Diameter	27 mm	27 mm	27 mm
Number Of Contacts	2+PE contacts	2+PE contacts	2+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Single wires	Single wires	Single wires
Wire Section	0.82 mm²	0.82 mm²	0.82 mm²
Protection Degree	IP67	IP67	IP67
Mating Cycles	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	2500 V	2500 V	2500 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	10 A	10 A	10 A
Max. Contact Resistance	5 mΩ	5 mΩ	5 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR (UL 94 HB)	PUR (UL 94 HB)	PUR (UL 94 HB)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated	Brass nickel plated / zinc diecasting nickel plated	Brass nickel plated / zinc diecasting nickel plated
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	09 2449 310 04	09 2449 300 04	09 2449 320 04
Connector Diameter	27 mm	27 mm	27 mm
Number Of Contacts	4 contacts	4 contacts	4 contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Single wires	Single wires	Single wires
Wire Section	0.82 mm²	0.82 mm²	0.82 mm²
Protection Degree	IP67	IP67	IP67
Mating Cycles	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	2500 V	2500 V	2500 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	8 A	8 A	8 A
Max. Contact Resistance	5 mΩ	5 mΩ	5 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR (UL 94 HB)	PUR (UL 94 HB)	PUR (UL 94 HB)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated	Brass nickel plated / zinc diecasting nickel plated	Brass nickel plated / zinc diecasting nickel plated
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	09 2451 310 05	09 2451 300 05	09 2451 320 05
Connector Diameter	27 mm	27 mm	27 mm
Number Of Contacts	4+PE contacts	4+PE contacts	4+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Single wires	Single wires	Single wires
Wire Section	0.82 mm²	0.82 mm²	0.82 mm²
Protection Degree	IP67	IP67	IP67
Mating Cycles	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	2500 V	2500 V	2500 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	8 A	8 A	8 A
Max. Contact Resistance	5 mΩ	5 mΩ	5 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR (UL 94 HB)	PUR (UL 94 HB)	PUR (UL 94 HB)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated	Brass nickel plated / zinc diecasting nickel plated	Brass nickel plated / zinc diecasting nickel plated
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt
