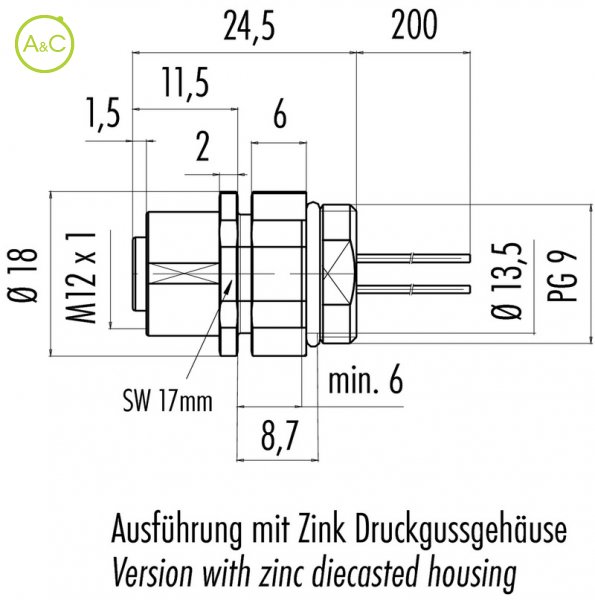

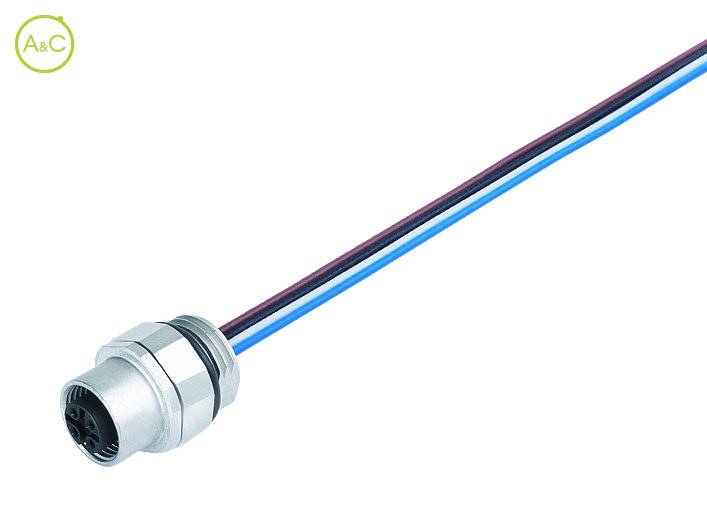

Female panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 4
- 5
- 8
- 12
| Article Number | 76 0732 0011 00004 0200 | 76 0832 0011 00004 0200 | 76 2732 0111 00004 0200 | 76 2832 0111 00004 0200 |
| Old Article Number | 09 3432 22 04 | 09 3432 722 04 | 09 3432 678 04 | 09 3432 778 04 |
| Connector Diameter | 18 mm | 18 mm | 18 mm | 18 mm |
| Number Of Contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts |
| Connector Locking System | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) |
| Termination | Single wires | Single wires | Single wires | Single wires |
| Wire Section | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP68 | IP68 | IP68 | IP68 |
| Mating Cycles | >100 times | >100 times | >100 times | >100 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 250 | 250 | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 | 3 | 3 |
| Overvoltage Categorie | II | II | II | II |
| Material Group | II | II | II | II |
| Rated Current (40°) | 4 A | 4 A | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA | PA | PA |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Stainless steel | Stainless steel |
| Datenblatt | Download Datenblatt | Download Datenblatt | Download Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
