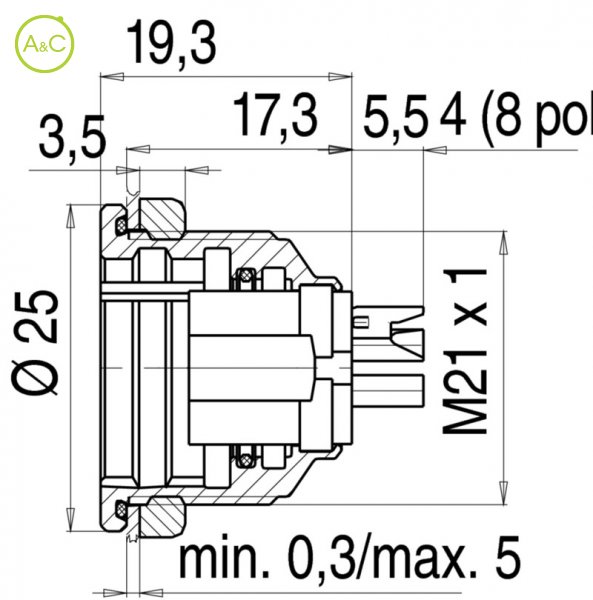

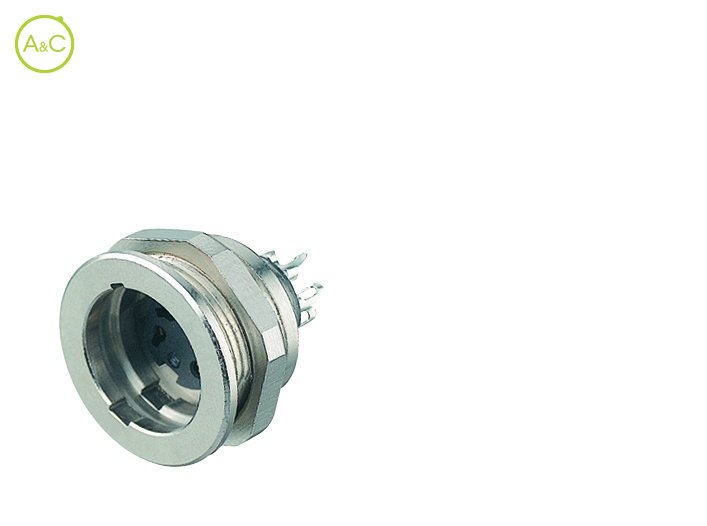

Female panel mount connector
- IP67
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 3 DIN
- 4
- 5
- 6 DIN
- 7
- 8 DIN
- 12
- 14
- 19
| Article Number | 09 4808 15 03 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 3 DIN contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 (32) |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 7 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 09 4812 15 04 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 (32) |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 6 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 09 4816 15 05 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 5 contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 (32) |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 6 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 09 4820 15 06 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 6 DIN contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 125 (32) |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 5 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 09 4828 15 07 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 7 contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 125 (32) |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 5 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 09 4832 15 08 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 8 DIN contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 5 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 09 4836 15 12 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 12 contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 09 4840 15 14 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 14 contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 09 4844 15 19 |
| Connector Diameter | 25 mm |
| Number Of Contacts | 19 contacts |
| Connector Locking System | Push-Pull |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
