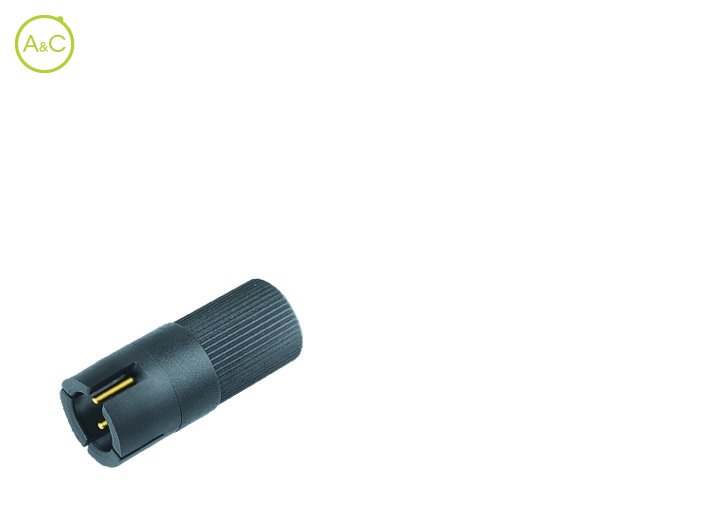

Male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 3
- 4
- 5
| Article Number | 09 9747 00 03 |

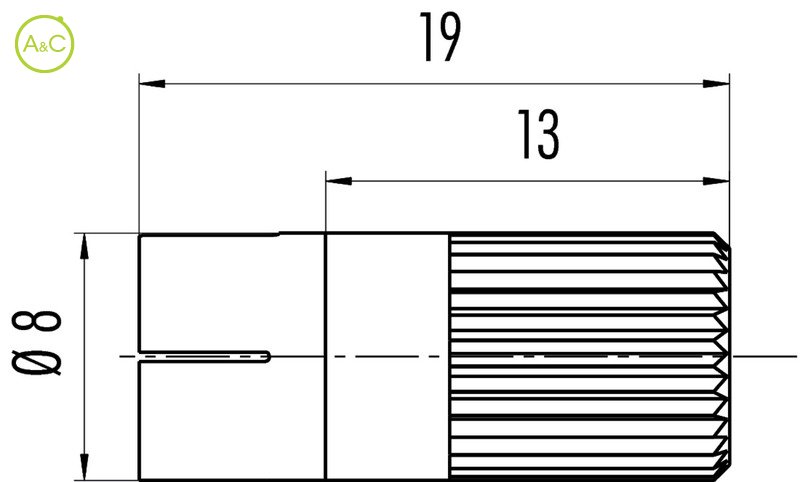

| Connector Diameter | 8 mm |
| Number Of Contacts | 3 contacts |
| Connector Locking System | Snap-in |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP40 |
| Mating Cycles | >100 times |
| Upper Temperature | +70 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 60 |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 1 |
| Overvoltage Categorie | II |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | PA |
| Cable Outlet | 3.6 mm |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
