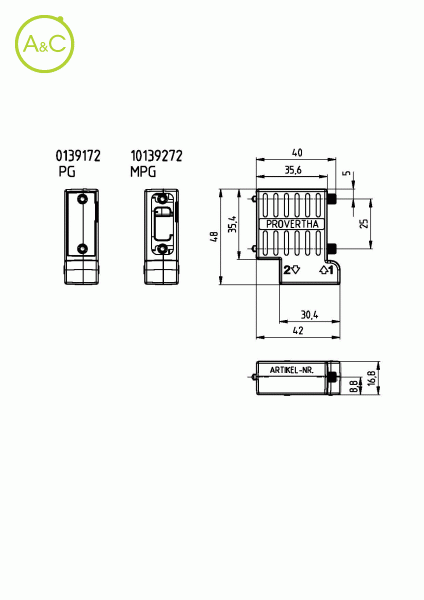

Download Datenblatt

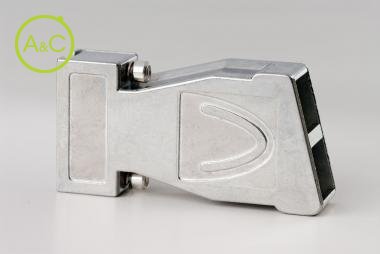

Die cast bus hood with 2 cable outputs
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
Provertha
Number Of Poles
- 9
| Article Number | 101 29 172 | 101 29 272 |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -20 °C | -20 °C |
| Thread | UNC 4-40 | UNC 4-40 |
| Material | Zn alloy | Zn alloy |
| Extra Information | New compact design with 2 cable outputs, ideal for bus and special applications Extremely space-saving when lined up together RF-proofed suitbale for sealed crimp flange system or screwed cable clamp Drastically reduced assembly time | New compact design with 2 cable outputs, ideal for bus and special applications Extremely space-saving when lined up together RF-proofed suitbale for sealed crimp flange system or screwed cable clamp Drastically reduced assembly time |
| Number Of D-subs | 1 | 2 |
| Locking Style | knurled screw | knurled screw |
| Cable Exit | Angled: 2x75° ( parallel) | Angled: 2x75° ( parallel) |
| Material/surface Locking Screws Diecast | St tin plated | St tin plated |
| Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
