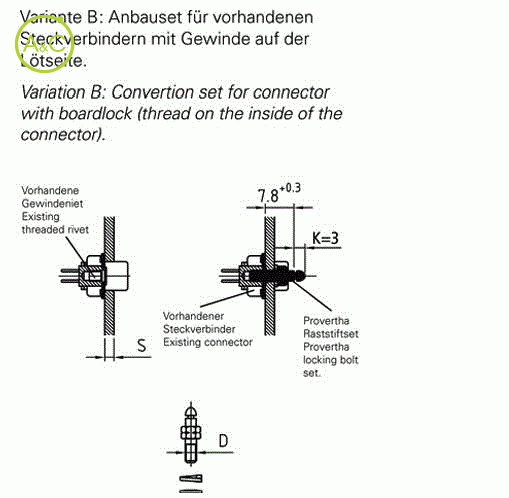

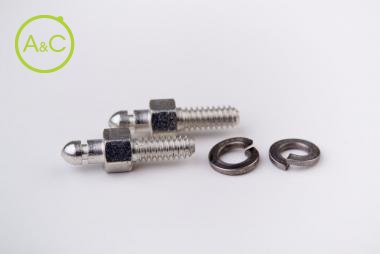

Convertion set for connectors with boardlock

Download Datenblatt

Thread

  • 4-40 UNC
  • M3
Article Number 104 TA 002 104 T 1002 104 T 15002 104 T 22002
Remark To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head
Panel Thickness S / 1,0-1,3 1,5-1,8 2,2-2,5
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
