Test Point Terminals
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Zierick
Zierick
Packaging
- Loose
- Reeled

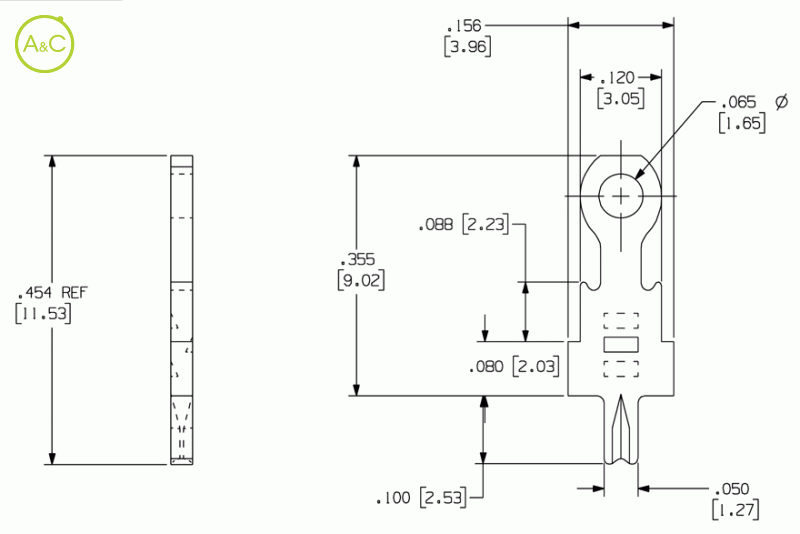

| Article Number | 1058 | 1059 |
| Extra Description | Terminal height is 11,53 mm | Terminal height is 11,53 mm |
| Material Thickness / Type | 0.020" (0.51mm) C26000 Brass | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper | 100% Tin over Copper |
| Current Rating | 10 Amperes | 10 Amperes |
| Applicator System | Loose: ZPT81-TP Reeled: Model 9700, 9700 XY | Loose: ZPT81-TP Reeled: Model 9700, 9700 XY |
| Mounting Type | Split Leg Splay | Split Leg Splay |
| Mounting Hole Diameter | 0.046" ±0.003" (1.17mm ±0.076) | 0.052" ±0.003" (1.32mm ±0.076) |
| Pieces Per Reel (loose Part No.) | NA | NA |
| Pieces Per Reel (reeled Part No.) | / | / |
| Datenblatt | Download Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
