Female Connector for FHH Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 10
- 20
- 30
- 40
- 50
- 60
Article Number | 10FHH-SM1-GAN-TF |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

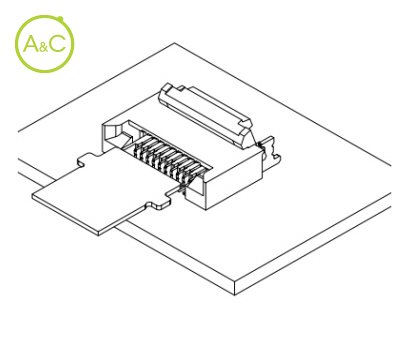

This is 2.0mm height connector with the double-sided contact for FPC.
As FPC with protrusions is used for this FHH connector, prevention of incomplete insertion and misinsertion are realised and connection reliability is improved.
RoHS Compliant
