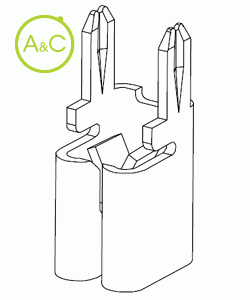

Universal Tab Receptacles for 0.025" (0.64mm) and 0.032" (0.81mm) Thick Terminals

Mating entry bottom and horizontal
Mounting type is Split leg Outward Splay

1118

1118

1118

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Packaging

Loose
Reeled
Taped

Article Number	1118	1188
Extra Description	Mounting type is Split leg Outward Splay	Mounting type is Split leg Outward Splay
Mating Terminal Size	0.025" (0.64mm) and 0.032" (0.81mm)	0.015" (0.38mm) and 0.025" (0.64mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper	100% Tin over Copper
Current Rating	20 Amperes	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type	Bottom and Horizontal	Bottom and Horizontal
Mounting Type	Split Leg Outward Splay	Split Leg Outward Splay

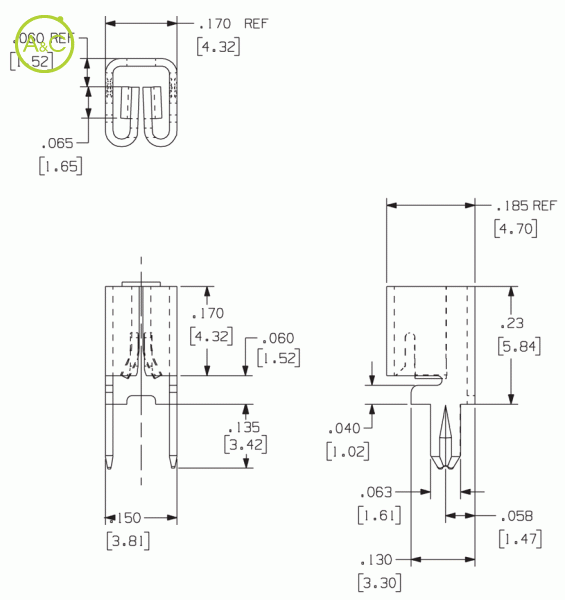

Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max	10mOhm Max
Temperature Rating	-65° to 85°C	-65° to 85°C
Pieces Per Reel (loose Part No.)	NA	NA
Pieces Per Reel (reeled Part No.)	/	/
Pieces Per Reel (taped Part No.)	/	/
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	6118	6188
Extra Description	Mounting type is Split leg Outward Splay	Mounting type is Split leg Outward Splay
Mating Terminal Size	0.025" (0.64mm) and 0.032" (0.81mm)	0.015" (0.38mm) and 0.025" (0.64mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper	100% Tin over Copper
Current Rating	20 Amperes	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type	Bottom and Horizontal	Bottom and Horizontal
Mounting Type	Split Leg Outward Splay	Split Leg Outward Splay
Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max	10mOhm Max
Temperature Rating	-65° to 85°C	-65° to 85°C
Pieces Per Reel (loose Part No.)	/	/
Pieces Per Reel (reeled Part No.)	4000	3500
Pieces Per Reel (taped Part No.)	/	/
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	1118T
Extra Description	Mounting type is Split leg Outward Splay
Mating Terminal Size	0.025" (0.64mm) and 0.032" (0.81mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type	Bottom and Horizontal
Mounting Type	Split Leg Outward Splay
Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	/
Pieces Per Reel (taped Part No.)	430
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
