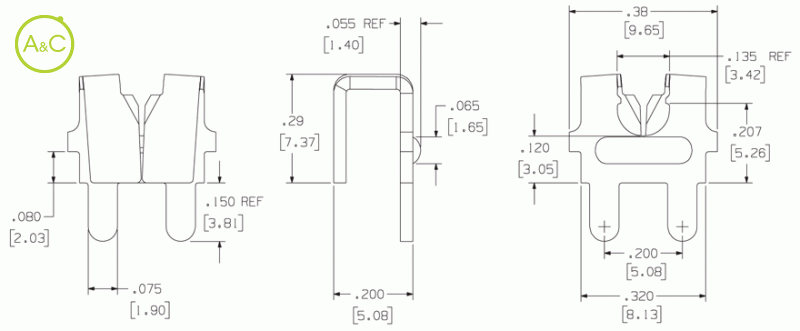

IDC (Insulation Displacement Connector) For #16-14 AWG Wire
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Zierick
Zierick
Packaging
- Loose
- Reeled
| Article Number | 1174 |
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper |
| Current Rating Ul | AWG 16 stranded 17.0 amperes AWG 16 solid 17.0 amperes AWG 14 stranded 22.0 amperes AWG 14 solid 22.0 amperes |
| Current Rating C-ul | AWG 16 stranded 15.0 amperes AWG 16 solid 17.0 amperes AWG 14 stranded 19.0 amperes AWG 14 solid 22.0 amperes |
| Ul File Number | E361770 |
| Applicator System | Loose: WTW-1174 Reeled: Model 9700, 9700 XY Wire Termination Tool: WTPPL-1174-1 |
| Mounting Type | Outward or Inward Splay |
| Mounting Hole Diameter | 2 holes 0.080" ±0.003" (2.03mm ±0.076mm) on 0.200" (5.08mm) centers |
| Wire Gauge Range | #16-14 AWG |
| Pieces Per Reel (loose Part No.) | NA |
| Pieces Per Reel (reeled Part No.) | / |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
