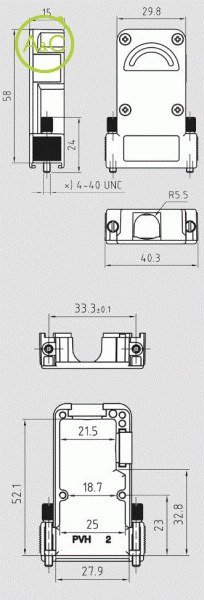

Long die cast hood with knurled screws

  • Hoods as seperate parts in plastic bag
  • Cable output 180° and 90°, Internal cable clamp

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Number Of Poles

  • 15
Article Number 118152DC25000 118153DC25000
Number Of Contacts 15 15
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Thread UNC 4-40 M3
Material zn alloy zn alloy
Extra Information Extend installation space for big cable diameter, mixed layout D-Sub, EMC electronic housing Simple assembly by only a few single parts and pre-assembled locking screws Extend installation space for big cable diameter, mixed layout D-Sub, EMC electronic housing Simple assembly by only a few single parts and pre-assembled locking screws
Locking Style knurled screw knurled screw
Cable Exit Straight 180° Angled: 1x90° Straight 180° Angled: 1x90°
Cable Fixing Cable clamp intern (al) Cable clamp intern (al)
Cable Outputs 2 2
Cable Diameter Internal Cable Clamp 4-12 4-12
Material/surface Locking Screws Diecast ST tin plated ST tin plated
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
