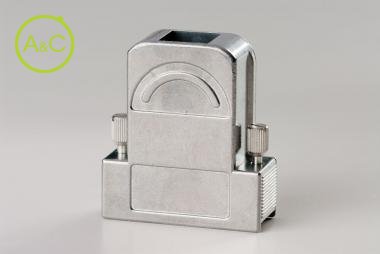

Compact DVI 360° EMI/RFI full metal hood with knurled locking screws
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
Provertha
Number Of Poles
- 15
| Article Number | 119152DC25001 | 119153DC25001 |
| Number Of Contacts | 15 | 15 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| Thread | UNC-4-40 | M3 |
| Material | zn alloy | zn alloy |
| Locking Style | Knurled screw | Knurled screw |
| Cable Exit | Straight 180° | Straight 180° |
| Cable Fixing | Cable clamp External (al) Crimp flange | Cable clamp External (al) Crimp flange |
| Cable Diameter External Cable Clamp | 4-14 | 4-14 |
| Cable Diameter Crimping Flange | 2,7-8,7 | 2,7-8,7 |
| Material/surface Locking Screws Diecast | ST tin plated | ST tin plated |
| Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
