Female Connector for FXR Connector
- FXR CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 11
- 13
- 15
- 17
- 19
- 21
- 23
- 25
- 27
- 29
- 31
- 33
- 35
- 37
- 39
- 45
- 47
- 51
- 61
| Article Number | 11FXR-RSM1-GAN-TB |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 13FXR-RSM1-GAN-TB |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 15FXR-RSM1-GAN-TB |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 17FXR-RSM1-GAN-TB |
| Number Of Contacts | 17 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 19FXR-RSM1-GAN-TB |
| Number Of Contacts | 19 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 21FXR-RSM1-GAN-TB |
| Number Of Contacts | 21 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 23FXR-RSM1-GAN-TB |
| Number Of Contacts | 23 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 25FXR-RSM1-GAN-TB |
| Number Of Contacts | 25 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 27FXR-RSM1-GAN-TB |
| Number Of Contacts | 27 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 29FXR-RSM1-GAN-TB |
| Number Of Contacts | 29 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 31FXR-RSM1-GAN-TB |
| Number Of Contacts | 31 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 33FXR-RSM1-GAN-TB |
| Number Of Contacts | 33 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 35FXR-RSM1-GAN-TB |
| Number Of Contacts | 35 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 37FXR-RSM1-GAN-TB |
| Number Of Contacts | 37 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 39FXR-RSM1-GAN-TB |
| Number Of Contacts | 39 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 45FXR-RSM1-GAN-TB |
| Number Of Contacts | 45 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 47FXR-RSM1-GAN-TB |
| Number Of Contacts | 47 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 51FXR-RSM1-GAN-TB |
| Number Of Contacts | 51 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 61FXR-RSM1-GAN-TB |
| Number Of Contacts | 61 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

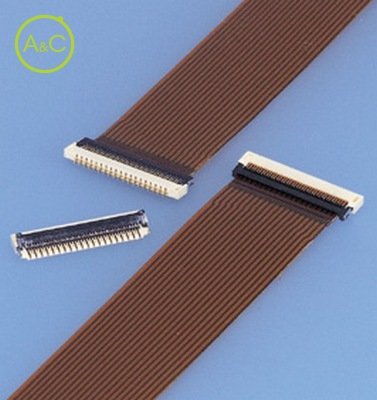

With a height of just 1.0mm, this 0.3mm pitch FPC connector is very low profile, which makes it an ideal connector for small applications such as mobile phones and MP3 players etc.
Featuring a ZIF (Zero Insertion Force) mechanism, and using heat resistant material, this connector is also easy to use and more than suitable for the high re-flow temperatures associated with lead free soldering.
Ultra low profile and ZIF mechanism

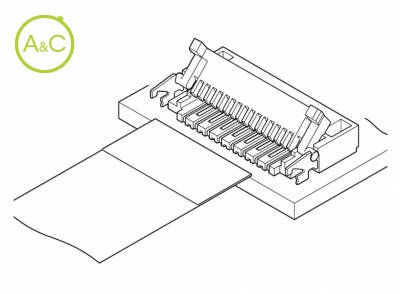

1.0mm (.039") height ultra low profile connector. A ZIF (zero insertion force) mechanism, which increases FPC insertion workability, wear resistance and extends the connector's mating life, is adopted.
Space saving design
Compared to the conventional 0.3mm (.012") pitch connector, mounting surface of connector is extremely reduced with 3.8mm (.150") depth, but maintain equivalent performance.
Heat resistant design for surface mounting application
The housing is made of heat resistant resin to allow reflow soldering.
RoHS Compliant
