Zurück zur Projektübersicht
Download Datenblatt
Female Connector for FXV Connector
- FXV CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 11
- 13
- 15
- 17
- 21
- 25
- 27
- 29
- 31
- 33
- 35
- 37
- 39
- 43
- 51
Article Number | 11FXV-RSM1-GAN-ETF |
Number Of Contacts | 11 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 13FXV-RSM1-GAN-ETF |
Number Of Contacts | 13 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 15FXV-RSM1-GAN-ETF |
Number Of Contacts | 15 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 17FXV-RSM1-GAN-ETF |
Number Of Contacts | 17 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 21FXV-RSM1-GAN-ETF |
Number Of Contacts | 21 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 25FXV-RSM1-GAN-ETF |
Number Of Contacts | 25 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 27FXV-RSM1-GAN-ETF |
Number Of Contacts | 27 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 29FXV-RSM1-GAN-ETF |
Number Of Contacts | 29 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 31FXV-RSM1-GAN-ETF |
Number Of Contacts | 31 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 33FXV-RSM1-GAN-ETF |
Number Of Contacts | 33 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 35FXV-RSM1-GAN-ETF |
Number Of Contacts | 35 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 37FXV-RSM1-GAN-ETF |
Number Of Contacts | 37 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 39FXV-RSM1-GAN-ETF |
Number Of Contacts | 39 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 43FXV-RSM1-GAN-ETF |
Number Of Contacts | 43 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 51FXV-RSM1-GAN-ETF |
Number Of Contacts | 51 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.3mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.30 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

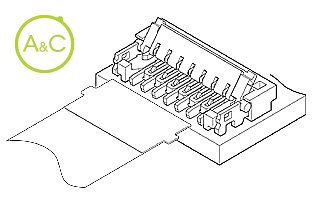

The FXV connector is a market required space saving and low profile 0.3mm pitch connector, and designed for corresponding to FPC with protrusions. As FPC with protrusions is used for this FXV connector, easy insertion operation, protection of incomplete insertion and miss-insertion are realized.
Double ZIF design for easy insertion operation of FPC
Self-lock cover design
Low profile and space saving
FPC with protrusions
RoHS Compliant
