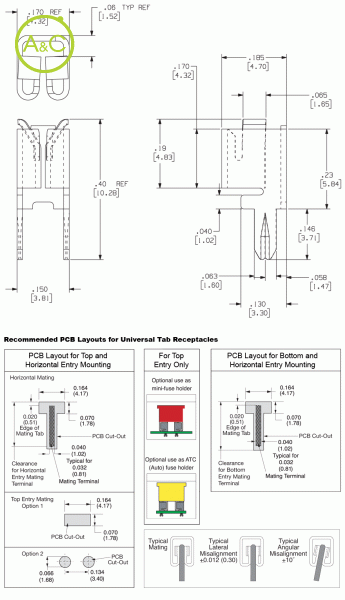

Universal Tab Receptacles for 0.025" (0.64mm) and 0.032" (0.81mm) Thick Terminals

Mating entry bottom and horizontal
Mounting type is Split leg Inward Splay

1299

1299

1299

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Packaging

Loose
Reeled

Article Number	1299
Extra Description	Mounting type is Split leg Inward Splay
Mating Terminal Size	0.015" (0.38mm) and 0.025" (0.64mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type	Bottom and Horizontal
Mounting Type	Split Leg Inward Splay
Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (reeled Part No.)	/
Datenblatt	Download Datenblatt

Article Number	6299
Extra Description	Mounting type is Split leg Inward Splay
Mating Terminal Size	0.015" (0.38mm) and 0.025" (0.64mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type	Bottom and Horizontal
Mounting Type	Split Leg Inward Splay
Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	4000
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
