Housing for SGN Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 8
- 13
- 14
Article Number | 13P-SGN |
Number Of Contacts | 13 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Board-in Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

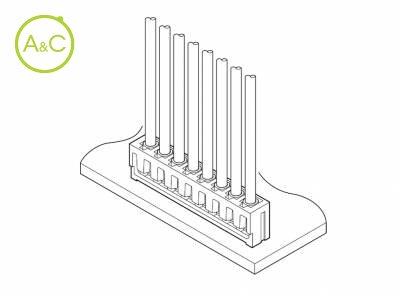

The SGN 2mm pitch wire-to-board crimp style connector only has a PCB mountable height of 4mm and a depth of 2.9mm, this makes this ideal for PCB applications where space is at a premium and product density a must.
Available in 8 to 14 circuit variations, this THT connector is a very simple and economical interconnect solution for small application devices such as; DVD players, 'In car' audio systems etc.
Ultra low profile
Despite its top entry style, as a result of restraining the connector height, equipment can be designed without wasting internal space.
Surface usage on the PC board is reduced
SGN connector is much smaller in width than existing product. This will help to reduce surface usage without changing the cable.
Reliable mounting
The spring feature of the contact part to the PC board will contribute to accommodate the connector securely even before soldering.
One touch connection
A one-touch operation to make multiple circuit jumper connection will realize rationalization of production.
Standards
UL Recognized E60389
RoHS Compliant
