Top Entry Type Plug With Bosses

JMC CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Stacking Height

3.0 mm
3.5 mm
4.0 mm
4.5 mm
5.0 mm
5.5 mm
6.0 mm
6.5 mm
7.0 mm
7.5 mm
8.0 mm
8.5 mm
9.0 mm
10.0 mm

Article Number	20P3.0-JMCS-G-B-TF	40P3.0-JMCS-G-B-TF	44P3.0-JMCS-G-B-TF	50P3.0-JMCS-G-B-TF
Number Of Contacts	20	40	44	50
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	20P3.5-JMCS-G-B-TF	30P3.5-JMCS-G-B-TF	40P3.5-JMCS-G-B-TF
Number Of Contacts	20	30	40
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	24P4.0-JMCS-G-B-TF	30P4.0-JMCS-G-B-TF	40P4.0-JMCS-G-B-TF	50P4.0-JMCS-G-B-TF	60P4.0-JMCS-G-B-TF
Number Of Contacts	24	30	40	50	60
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm	0.50 mm	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	20P4.5-JMCS-G-B-TF
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	14P5.0-JMCS-G-B-TF	20P5.0-JMCS-G-B-TF	40P5.0-JMCS-G-B-TF	60P5.0-JMCS-G-B-TF
Number Of Contacts	14	20	40	60
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	20P5.5-JMCS-G-B-TF
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20P6.0-JMCS-G-B-TF	40P6.0-JMCS-G-B-TF	60P6.0-JMCS-G-B-TF
Number Of Contacts	20	40	60
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	30P6.5-JMCS-G-B-TF	40P6.5-JMCS-G-B-TF
Number Of Contacts	30	40
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	50P7.0-JMCS-G-B-TF
Number Of Contacts	50
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	50P7.5-JMCS-G-B-TF
Number Of Contacts	50
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	50P8.0-JMCS-G-B-TF	64P8.0-JMCS-G-B-TF
Number Of Contacts	50	64
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	34P8.5-JMCS-G-B-TF
Number Of Contacts	34
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	30P9.0-JMCS-G-B-TF	40P9.0-JMCS-G-B-TF	50P9.0-JMCS-G-B-TF	60P9.0-JMCS-G-B-TF
Number Of Contacts	30	40	50	60
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	20P10.0-JMCS-G-B-TF	40P10.0-JMCS-G-B-TF
Number Of Contacts	20	40
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

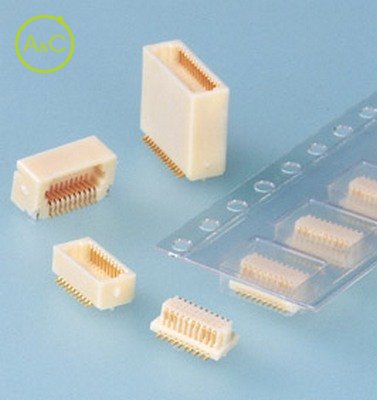

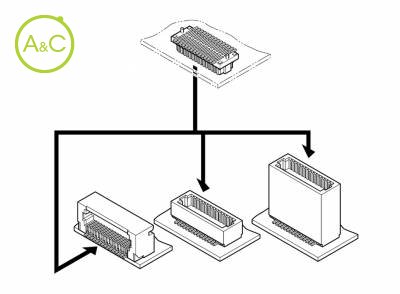

Secure mating Cantilever type contact that has a wiping effectiveness, which provides secure mating by contact lock with favourable click feeling. Guide ribs on both sides of the plug and housing toward pitch direction prevent distortion. Versatile number of circuits and height. Secure mating Cantilever type contact that has wiping effectiveness provides secure mating by contact lock with favourable click-feeling. Distortion resistant construction Guide ribs on both sides of plug and housing toward pitch direction prevent distortion. Versatile number of circuit and height Number of circuits: 14 to 64 Height: 3.0mm to 11.0mm Absorbing misalignment when mating connector The receptacle housing consists of two separated parts and has the moveable part between mating part and soldering part of contacts. This enables to absorb torsion strain and misalignment when mating connector. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
