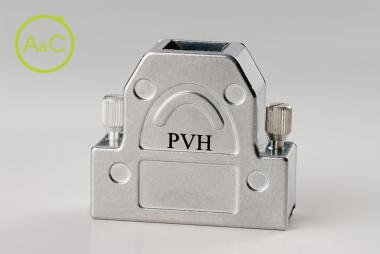

Diecast hoods with screw locking

Haben Sie Fragen zu diesem Produkt?

Download Datenblatt

Weitere Informationen über diese Marke:

Article Number	17 09 DC 25 000
Number Of Contacts	9
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	4-10
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	17 15 DC 25 000
Number Of Contacts	15
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	4-12
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	17 25 DC 25 000
Number Of Contacts	25
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	4-12
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	17 37 DC 25 000
Number Of Contacts	37
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	7-15
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	17 50 DC 25 000
Number Of Contacts	50
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	7-15
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
