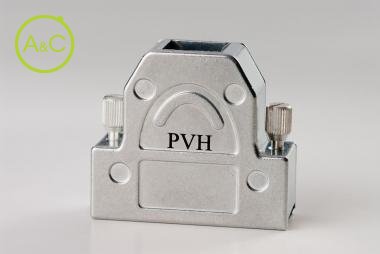

Diecast hoods with screw locking

Haben Sie Fragen zu diesem Produkt?

Download Datenblatt

Weitere Informationen über diese Marke:

Article Number	17 09 DC 25 001
Number Of Contacts	9
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	4-10
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	17 15 DC 25 001
Number Of Contacts	15
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	4-12
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	17 25 DC 25 001
Number Of Contacts	25
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	4-12
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	17 37 DC 25 001
Number Of Contacts	37
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	7-15
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	17 50 DC 25 001
Number Of Contacts	50
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Straight 180° Angled 25-50p: 2x30°
Cable Fixing	clamp intern (al)
Cable Diameter Internal Cable Clamp	7-15
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

Zubehör

Thumb screw tinnen with slote fitting for diecast hoods

Thumb screw tinnen with slote fitting for diecast hoods

Socket head cap screw ISO4762 fitting for diecast hoods

Socket head cap screw ISO4762 fitting for diecast hoods

Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC

Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC

Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC

Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
