Female Connector for FXS Connector

FXS CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	17FXS-RSM1-GAN-TF(B)
Number Of Contacts	17
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	21FXS-RSM1-GAN-TF(B)
Number Of Contacts	21
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	25FXS-RSM1-GAN-TF(B)
Number Of Contacts	25
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	33FXS-RSM1-GAN-TF(B)
Number Of Contacts	33
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	39FXS-RSM1-GAN-TF(B)
Number Of Contacts	39
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	45FXS-RSM1-GAN-TF(B)
Number Of Contacts	45
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	51FXS-RSM1-GAN-TF(B)
Number Of Contacts	51
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

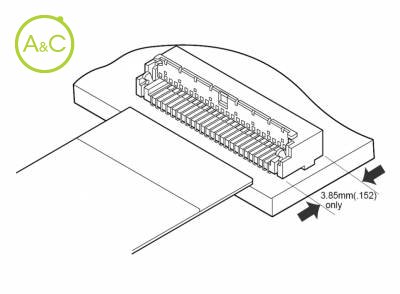

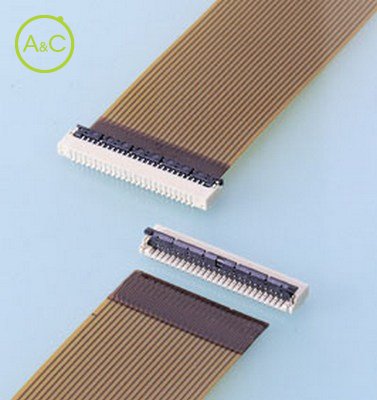

The FXS connector is a space-saving flip lock type connector with 1.8mm (.071") height and only 3.85mm (.152") depth. Compared to the conventional 0.3mm (.012") pitch connector, the height and depth are reduced, yet maintain equivalent performance. A metal shaft inside the cover is retained by the reinforcement tabs. This structure prevents the cover from coming off as well as contributing to operational improvements. By using the reinforcement tab as a hook instead of using resin, this new locking system has improved the locking strength. Space saving design Compared to the conventional 0.3mm (.012") pitch connector, the height and depth are reduced, yet maintain equivalent performance. Rotating cover structure A metal shaft inside the cover is sustained by the reinforcement tabs. This structure prevents the cover from coming off as well as contributing to operational improvements. Locking structure This new locking system, which uses the reinforcement tab as a hook instead of using resin, has improved the locking strength. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
