Zurück zur Projektübersicht
Download Datenblatt
Female Connector for FVX Connector
- FVX CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 21
- 25
- 29
- 35
- 41
- 51
- 55
- 59
- 63
- 71
- 77
Article Number | 21FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 21 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 25FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 25 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 29FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 29 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 35FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 35 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 41FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 41 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 51FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 51 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 55FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 55 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 59FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 59 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 63FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 63 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 71FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 71 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 77FVX-RSM1-GAN-ETF(S) |
Number Of Contacts | 77 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.2mm Pitch ZIF Connector for FPC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.20 mm |
Rated Current (ac/dc) | 0.2 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

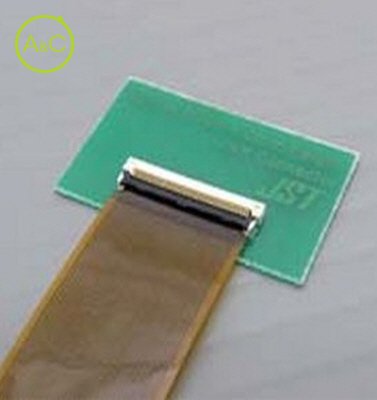

0.2mm pitch FVX Connector for FPC has been developed for small portable equipment for which low profile and miniaturization are required.

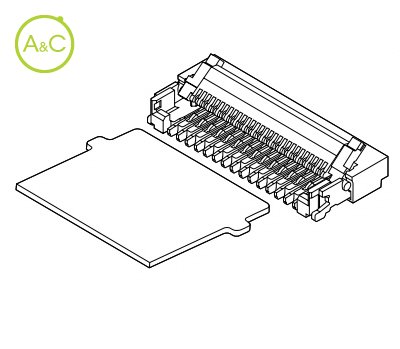

By using FPC with protrusions, the positioning accuracy of FPC is improved.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
