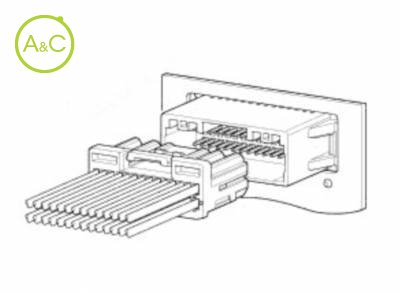

Female Connector for BMD Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 28
| Article Number | 28BMD-B-01A |
| Number Of Contacts | 28 |
| Upper Temperature | +105 °C |
| Lower Temperature | -30 °C |
| General Description | 2.20mm Pitch Disconnectable Crimp Style |
| Connection Type | Automotive |
| Pitch / Style | 2.20 mm |
| Rated Current (ac/dc) | 5 C, DC (0.5mm2, Single Circuit) A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Surface mounting type connector of bottom entry type developed for instruments for automobile.
High reliability
Using the tried and true terminal ensures high performance and high reliability. The retainer (secondary lock) is provided for automobile, and reliability is improved.
Surface mounting
Corresponding to the surface mounting, workability is improved.
RoHS Compliant
