Connector Top Entry for FY Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 30
- 40
- 50
Article Number | 30FY-BMT-TB |
Number Of Contacts | 30 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.5mm Pitch Non-ZIF Connector for FFC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.50 mm |
Rated Current (ac/dc) | 0.3 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
This 0.5mm pitch Non-ZIF connector features a single sided contact construction that not only allows for the FFC/FPC to be easily inserted but also enables the connector to offer superior electrical performance.

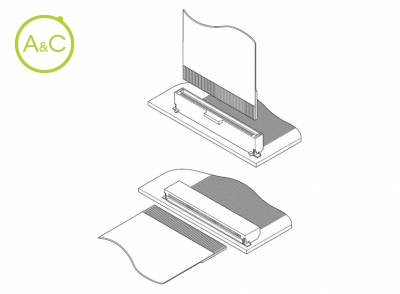

Further more, this top and side entry SMT connector incorporates reinforcement solder tabs at each end of the connector that facilitate adhesion to the PCB and prevent the connector from distorting during FFC/FPC insertion/withdrawal cycles.
Heat resistant design suitable for surface mounting
The housing is made of heat resistant resin to allow reflow soldering.
One-sided contact construction
Though the insertion force is low, with its unique contact construction, the FY connector retains stable contact performance.
Solder tabs
This connector also features reinforcing solder tabs to prevent lifting of the connector during mating and unmating.

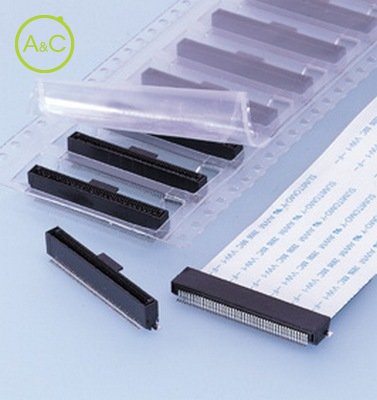

Embossed tape for automatic mounting
Supplied in embossed tape packaging for mounting by automatic placement machines.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV R50006970
RoHS Compliant
