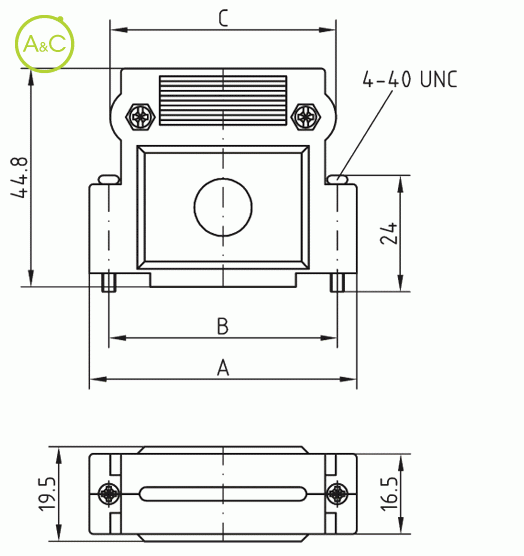

Flat cable hoods

Hoods as set in bag

37 090G 001

37 090G 001

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

9
15
25
37

Article Number	37 090G 001	37 090M 001
Number Of Contacts	9	9
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Material	ABS	ABS
Extra Information	Two piece plastic hood integrated strain relief	Two piece plastic hood integrated strain relief
Hood Version	Grey	Metallized
Locking Style	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	37 150G 001	37 150M 001
Number Of Contacts	15	15
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Material	ABS	ABS
Extra Information	Two piece plastic hood integrated strain relief	Two piece plastic hood integrated strain relief
Hood Version	Grey	Metallized
Locking Style	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	37 250G 001	37 250M 001
Number Of Contacts	25	25
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Material	ABS	ABS
Extra Information	Two piece plastic hood integrated strain relief	Two piece plastic hood integrated strain relief
Hood Version	Grey	Metallized
Locking Style	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	37 370G 001	37 370M 001
Number Of Contacts	37	37
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Material	ABS	ABS
Extra Information	Two piece plastic hood integrated strain relief	Two piece plastic hood integrated strain relief
Hood Version	Grey	Metallized
Locking Style	Knurled screw	Knurled screw
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
