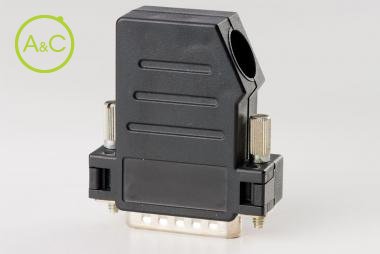

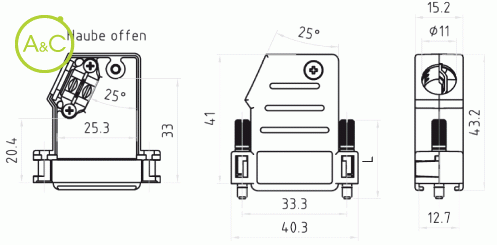

Compact D-Sub plastic hood for mixed layout connectors and standard use
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
Provertha
Thread
- M3
- UNC 4-40
| Article Number | 47 15 5B 25 T 000 | 47 15 5M 25 T 000 |
| Cable Diameter Range | 5-11 mm | 5-11 mm |
| Number Of Contacts | 15 | 15 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| Cable Diameter | 5-11 mm | 5-11 mm |
| Material | ABS UL 94-V0 | ABS UL 94-V0 |
| Colour | Black | Black |
| Hood Version | black with 25 mm knurled screw | Metallized with 25 mm knurled screw |
| Locking Style | knurled screw | knurled screw |
| Cable Exit | Angled 1x25° | Angled 1x25° |
| Starting Torque | Max. 35 Ncm | Max. 35 Ncm |
| Metallization | Nickel plated | Nickel plated |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
