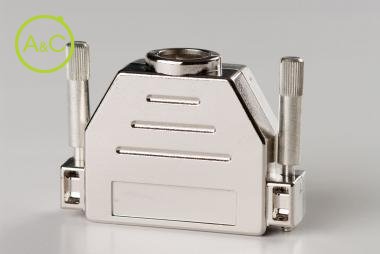

Clip hood with side screw locks
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
Provertha
Number Of Poles
- 25
| Article Number | 57 25 5B 25 T 000 | 57 25 5M 25 T 000 |
| Number Of Contacts | 25 | 25 |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -20 °C | -20 °C |
| Plating | Nickel plated copper | Nickel plated copper |
| Thread | UNC 4-40 | UNC 4-40 |
| Remark | For a fastening screw with M3 thread put in the article number M3 before the "T" | For a fastening screw with M3 thread put in the article number M3 before the "T" |
| Material | ABS UL 94-V0 | ABS UL 94-V0 |
| Extra Information | Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors | Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors |
| Hood Version | black with 25 mm slotted screw | Metallized with 25 mm thumb screw + slot |
| Locking Style | knurled screw | knurled screw |
| Cable Exit | Straight | Straight |
| Cable Fixing | Clamp intern (al) | Clamp intern (al) |
| Cable Diameter Internal Cable Clamp | 4-12 | 4-12 |
| Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
