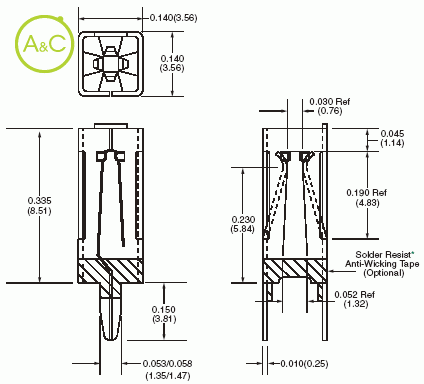

Bottom Entry 4 Beam Box Receptacles
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Zierick
Zierick
- General
| Article Number | 6062-101 |
| Packaging | Reeled |
| Extra Description | Mating terminal size is 1,52-2,41 mm |
| Mating Terminal Size | 0.060" (1.52mm) Rd. or Sq. 0.095" (2.41mm) Rd. or Sq. |
| Material Thickness / Type | 0.010" (0.25mm) C51000 Phosphor Bronze |
| Standard Finish | 100% Tin over Copper |
| Current Rating Ul | 10 Amperes |
| Current Rating C-ul | 10 Amperes |
| Ul File Number | E361770 |
| Applicator System | Model 9700, 9700 XY |
| Taperesist™ | Optional |
| Mating Type | Vertical |
| Mounting Type | Outward Splay |
| Mounting Hole Diameter | 0.150" ±0.003" (3.81mm ±0.076mm) |
| Resistance Rating | 10mOhm Max |
| Mating Entry | Bottom |
| Temperature Rating | -65° to 105°C |
| Insertion Force-max. | Application Dependent / Submit Mating Terminal Sample to Factory |
| Withdrawal Force-max. | Application Dependent / Submit Mating Terminal Sample to Factory |
| Pieces Per Reel (reeled Part No.) | 5000 |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
