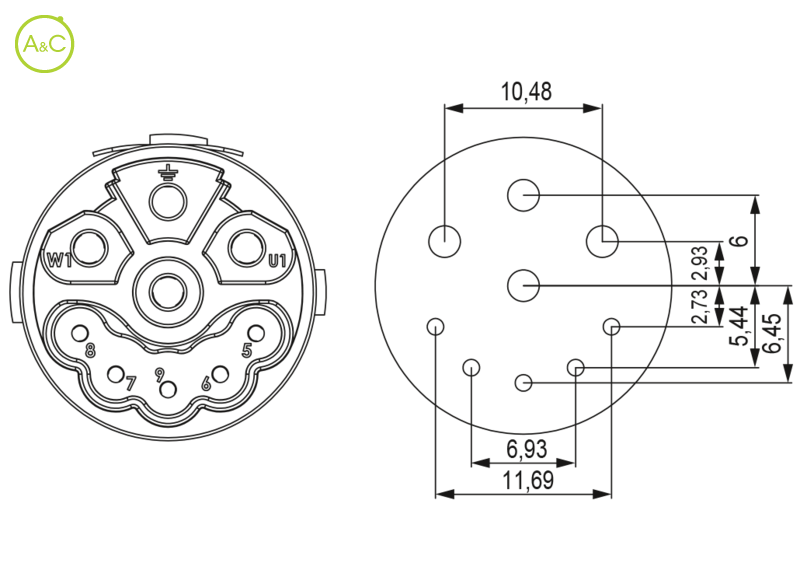

Inserts 9-pole
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Hummel
Hummel
- General
| Number Of Contacts | 9 |
| Mating Cycles | >1000 times |
| Upper Temperature | +125 °C |
| Lower Temperature | -40 °C |
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
| Required Crimp Contacts |
"5 x 1 mm: 7.010.941.002 (0,14 - 1 mm²) & 4 x 2 mm: 7.010.942.002 (0,75 - 2,5 mm²), 7.010.942.012 (2,5 - 4 mm²)" |
| Contact Diameter (a) | 1 |
| Contact Diameter (b) | 2 |
| Wire Section (a) | 0,14-1 mm² |
| Wire Section (b) | 0,75-4 mm² |
| Nominal Current (a) | 10 A |
| Nominal Current (b) | 28 A |
| Nominal Voltage (degree Of Pollution 3) (a) | 250 V ~ |
| Nominal Voltage (degree Of Pollution 3) (b) | 630 V ~ |
| Test Voltage (a) | 2500 V ~ |
| Test Voltage (b) | 4000 V ~ |
| Insulation Resistance | > 1013 MΩ |
| Max. Contact Resistance (a) | 3 MΩ |
| Max. Contact Resistance (b) | 3 MΩ |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
