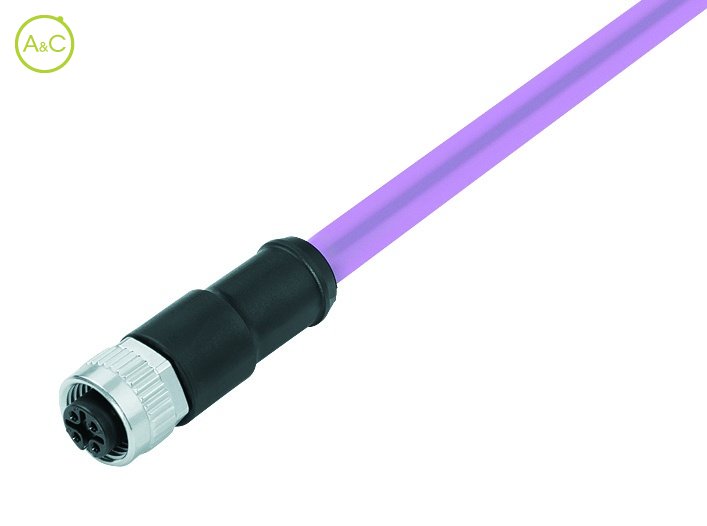

Female cable connector

  • CAN-bus
  • UL-approval

Number Of Poles

  • 5
Article Number 77 2530 0000 50705 0200 77 2530 0000 50705 0500 77 2530 0000 50705 1000

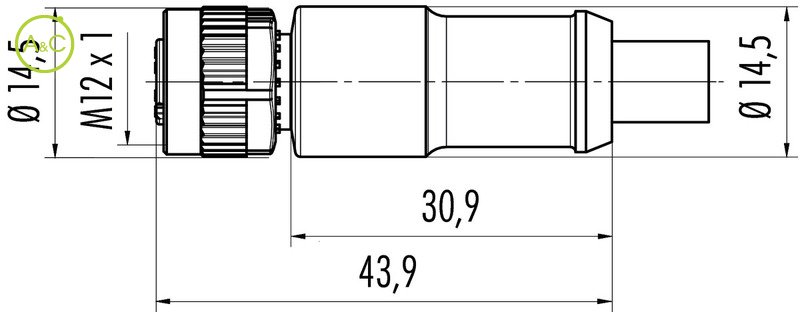

Connector Diameter 14.5 mm 14.5 mm 14.5 mm
Number Of Contacts 5 contacts 5 contacts 5 contacts
Connector Locking System Screw (M12-A) Screw (M12-A) Screw (M12-A)
Termination Crimp, moulded Crimp, moulded Crimp, moulded
Wire Section 0,1 to 0,75 mm² 0,1 to 0,75 mm² 0,1 to 0,75 mm²
Protection Degree IP 67 IP 67 IP 67
Mating Cycles >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 60 60 60
Rated Impuls Voltage 1500 V 1500 V 1500 V
Pollution Degree 3 3 3
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PUR PUR PUR
Material Of Housing PUR PUR PUR
Cable Diameter 7,2 mm 7,2 mm 7,2 mm
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
