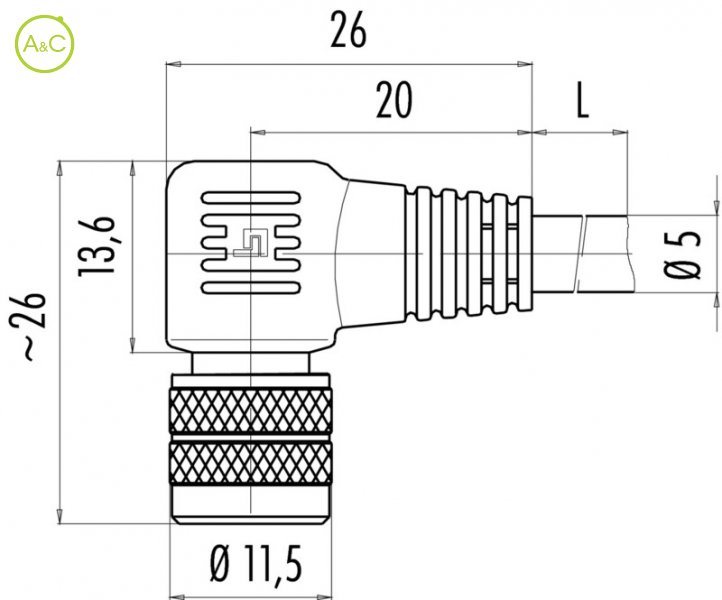

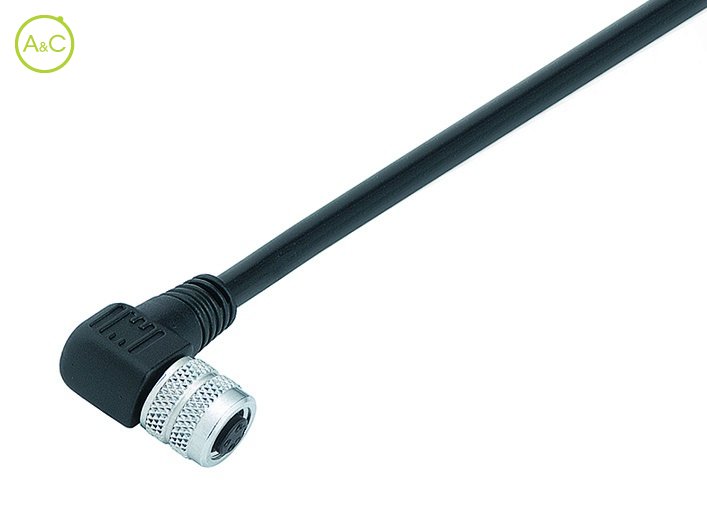

Female angled connector

  • Moulded, screw version, M8x1, shielded

Number Of Poles

  • 3
Article Number 77 3508 0000 50003 0200 77 3508 0000 50003 0500
Old Article Number 79 3508 52 03 79 3508 55 03
Connector Diameter 11.5 mm 11.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M8) Screw (M8)
Termination Crimp, moulded Crimp, moulded
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 4,5 mm 4,5 mm
Cable 3x0,25 PUR mm² 3x0,25 PUR mm²
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
