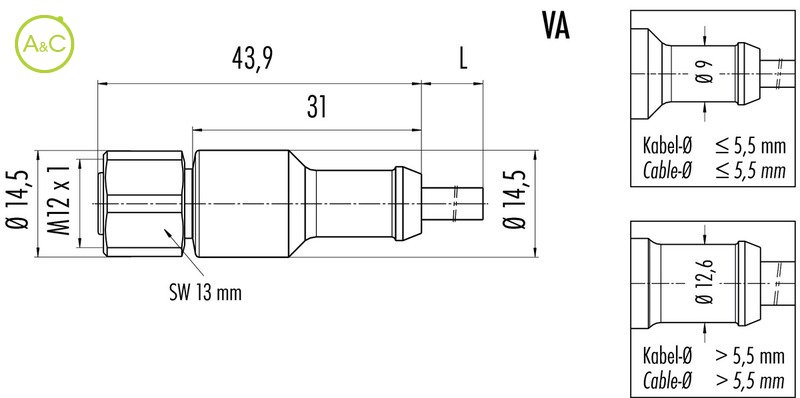

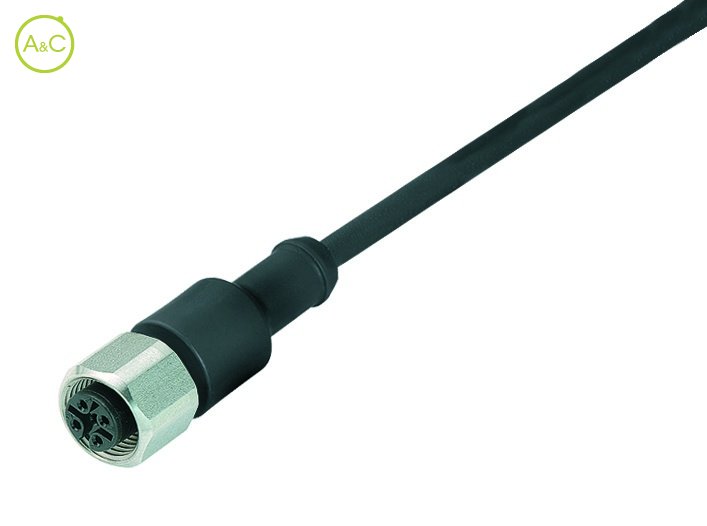

Female cable connector

Moulded, stainless steel ring nut

77-3730-0000-50003-0200

77-3730-0000-50003-0200

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3
4
5
8

Article Number	77 3730 0000 50003 0200
Old Article Number	79 3430 52 04
Connector Diameter	14.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (M12-A)
Termination	Crimp, moulded
Wire Section	0.34 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	4,5 mm
Cable	3 x 0,34 PUR mm²
Cable Jacket Material	PUR
Insulation Wire	PVC
Datenblatt	Download Datenblatt

Article Number	77 3730 0000 50004 0200
Old Article Number
Connector Diameter	14.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Crimp,moulded
Wire Section	0.34 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	5 mm
Cable	4 x 0,34 PUR mm²
Cable Jacket Material	PUR
Insulation Wire	PVC
Datenblatt	Download Datenblatt

Article Number	77 3730 0000 50005 0200
Old Article Number	79 3440 52 05
Connector Diameter	14.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Crimp, moulded
Wire Section	0.25 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	5 mm
Cable	5 x 0,25 PUR mm²
Cable Jacket Material	PUR
Insulation Wire	PVC
Datenblatt	Download Datenblatt

Article Number	77 3730 0000 50708 0200
Old Article Number
Connector Diameter	14.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Crimp,moulded
Wire Section	0.25 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	5 mm
Cable	8 x 0,25 PUR mm²
Cable Jacket Material	PUR
Insulation Wire	PVC
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
