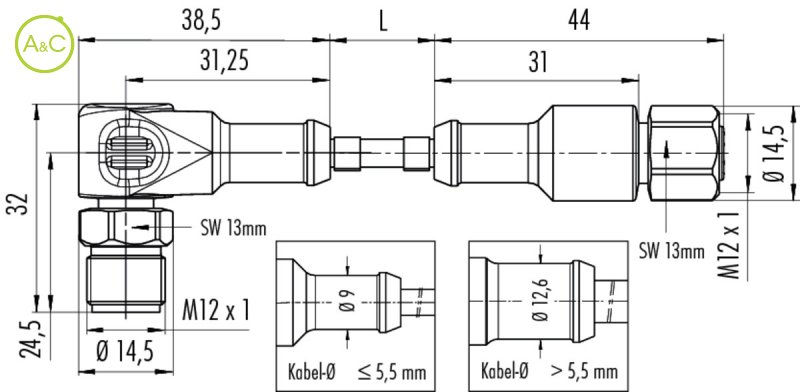

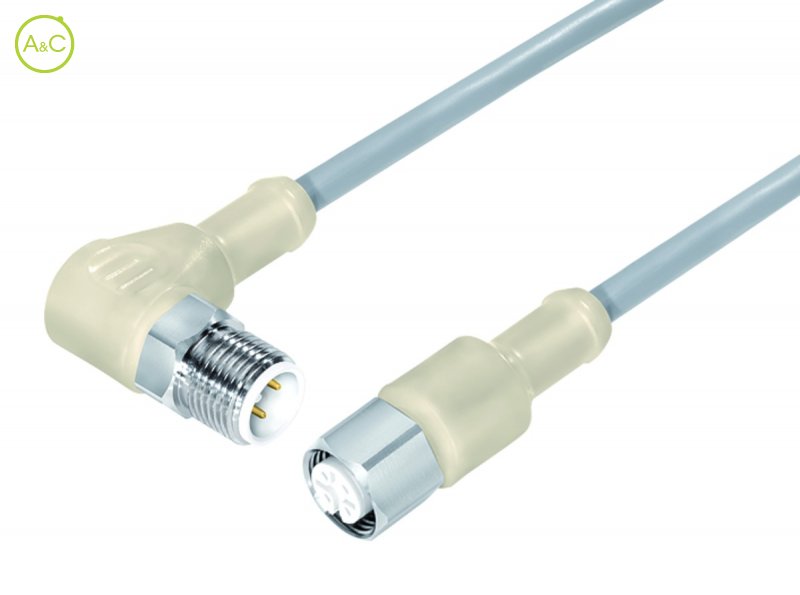

Connecting cable, male angled connector M12x1 & female cable connector M12x1

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

Article Number	77 3730 3727 20403 0200	77 3730 3727 20403 0500
Color	Grey	Grey
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, overmoulded on cable	Crimp, overmoulded on cable
Wire Section	0.34 mm²	0.34 mm²
Protection Degree	IP69K	IP69K
Mating Cycles	>100 times	>100 times
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	Cuzn (Brass), Cusn (Bronze)	Cuzn (Brass), Cusn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PP	PP
Material Of Housing	PP	PP
Insulation Single Lead	PVC	PVC
Single Lead Structure	32x0,1	32x0,1
Cable Sheath Ø	4.5 mm	4.5 mm
Conductor Resistance	57 Ω/km	57 Ω/km
Bending Radius Cable Fixed	Min. 5xD	Min. 5xD
Bending Radius Cable Movable	min. 10xD	min. 10xD
Wire Gauge	22 AWG	22 AWG
Material Housing Of Cable	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3730 3727 20404 0200	77 3730 3727 20404 0500
Color	Grey	Grey
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, overmoulded on cable	Crimp, overmoulded on cable
Wire Section	0.34 mm²	0.34 mm²
Protection Degree	IP69K	IP69K
Mating Cycles	>100 times	>100 times
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	Cuzn (Brass), Cusn (Bronze)	Cuzn (Brass), Cusn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PP	PP
Material Of Housing	PP	PP
Insulation Single Lead	PVC	PVC
Single Lead Structure	32x0,1	32x0,1
Cable Sheath Ø	4.8 mm	4.8 mm
Conductor Resistance	79 Ω/km	79 Ω/km
Bending Radius Cable Fixed	Min. 5xD	Min. 5xD
Bending Radius Cable Movable	min. 10xD	min. 10xD
Wire Gauge	22 AWG	22 AWG
Material Housing Of Cable	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3730 3727 20405 0200	77 3730 3727 20405 0500
Color	Grey	Grey
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, overmoulded on cable	Crimp, overmoulded on cable
Wire Section	0.34 mm²	0.34 mm²
Protection Degree	IP69K	IP69K
Mating Cycles	>100 times	>100 times
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	60	60
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	Cuzn (Brass), Cusn (Bronze)	Cuzn (Brass), Cusn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PP	PP
Material Of Housing	PP	PP
Insulation Single Lead	PVC	PVC
Single Lead Structure	32x0,1	32x0,1
Cable Sheath Ø	4.8 mm	4.8 mm
Conductor Resistance	79 Ω/km	79 Ω/km
Bending Radius Cable Fixed	Min. 5xD	Min. 5xD
Bending Radius Cable Movable	min. 10xD	min. 10xD
Wire Gauge	22 AWG	22 AWG
Material Housing Of Cable	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3730 3727 20908 0200	77 3730 3727 20908 0500
Color	Grey	Grey
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, overmoulded on cable	Crimp, overmoulded on cable
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP69K	IP69K
Mating Cycles	>100 times	>100 times
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	2 A	2 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	Cuzn (Brass), Cusn (Bronze)	Cuzn (Brass), Cusn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PP	PP
Material Of Housing	PP	PP
Insulation Single Lead	PVC	PVC
Single Lead Structure	32x0,1	32x0,1
Cable Sheath Ø	6 mm	6 mm
Conductor Resistance	79 Ω/km	79 Ω/km
Bending Radius Cable Fixed	Min. 5xD	Min. 5xD
Bending Radius Cable Movable	min. 10xD	min. 10xD
Wire Gauge	24 AWG	24 AWG
Material Housing Of Cable	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3730 3727 20912 0200	77 3730 3727 20912 0500
Color	Grey	Grey
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	12 contacts	12 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, overmoulded on cable	Crimp, overmoulded on cable
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP69K	IP69K
Mating Cycles	>100 times	>100 times
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	1.5 A	1.5 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	Cuzn (Brass), Cusn (Bronze)	Cuzn (Brass), Cusn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PP	PP
Material Of Housing	PP	PP
Insulation Single Lead	PVC	PVC
Single Lead Structure	32x0,1	32x0,1
Cable Sheath Ø	6.6 mm	6.6 mm
Conductor Resistance	79 Ω/km	79 Ω/km
Bending Radius Cable Fixed	Min. 5xD	Min. 5xD
Bending Radius Cable Movable	min. 10xD	min. 10xD
Wire Gauge	24 AWG	24 AWG
Material Housing Of Cable	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt
