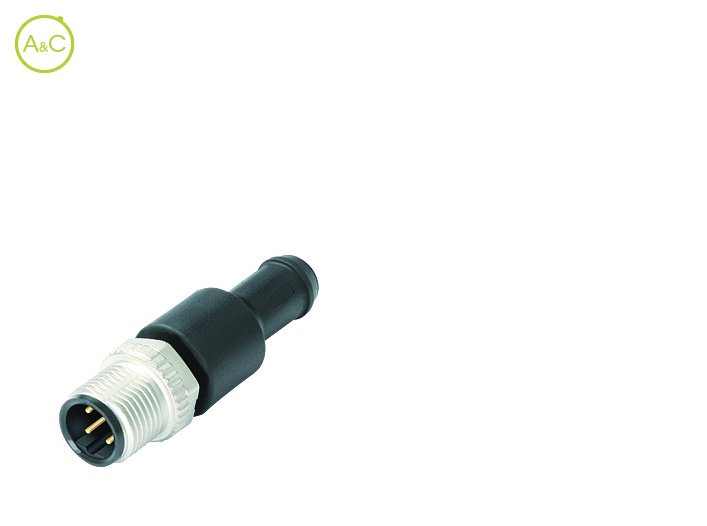

Male terminating connector

  • PROFIBUS

Number Of Poles

  • 4
Article Number 77 9835 0000 00004

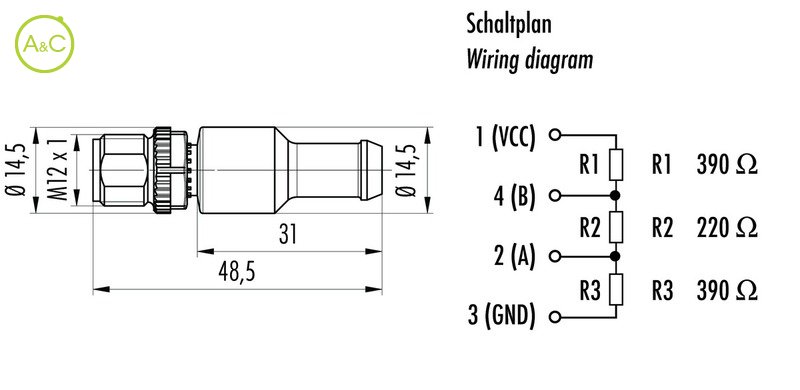

Connector Diameter 14.5 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-B)
Termination Crimp, moulded
Wire Section 0,1 -0,75 mm²
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PUR
Material Of Housing PUR
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
