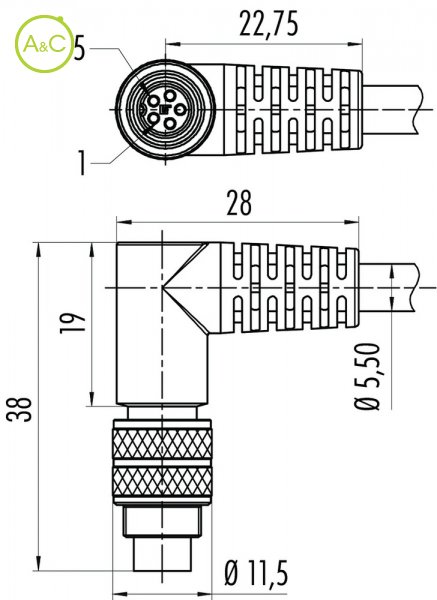

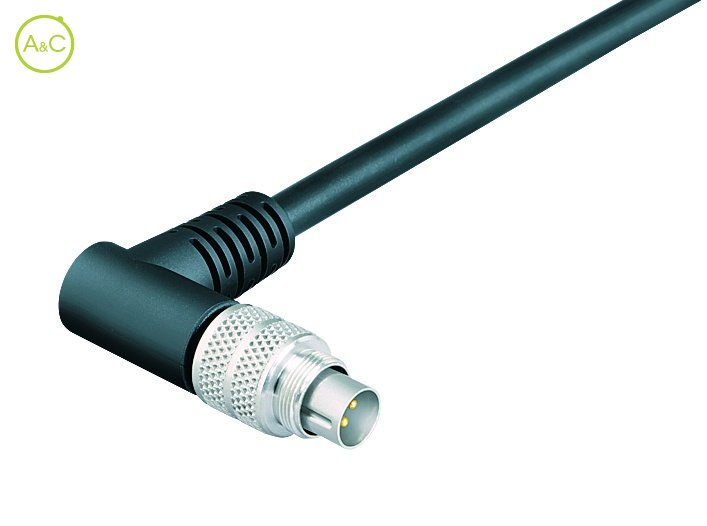

Male angled connector

Moulded, shielded

79-1401-72-02

79-1401-72-02

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

2
3
4
5
7
8

Article Number	79 1401 72 02	79 1401 75 02
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	2 contacts	2 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1405 72 03	79 1405 75 03
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1409 72 04	79 1409 75 04
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1413 72 05	79 1413 75 05
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1421 72 07	79 1421 75 07
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	7 contacts	7 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1425 72 08	79 1425 75 08
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
