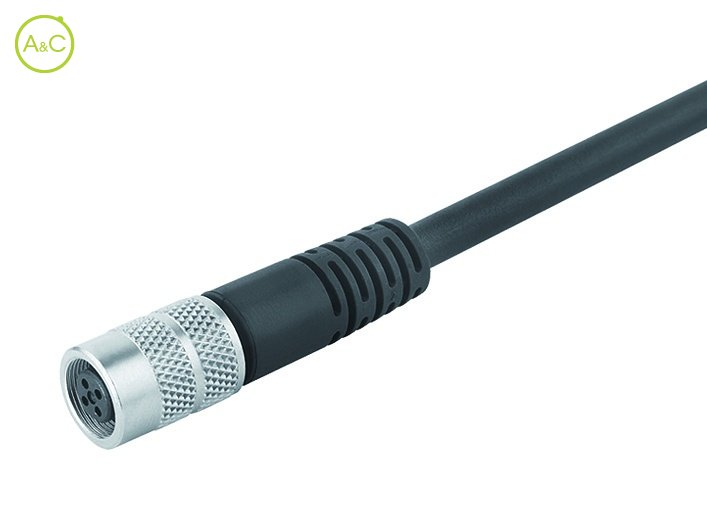

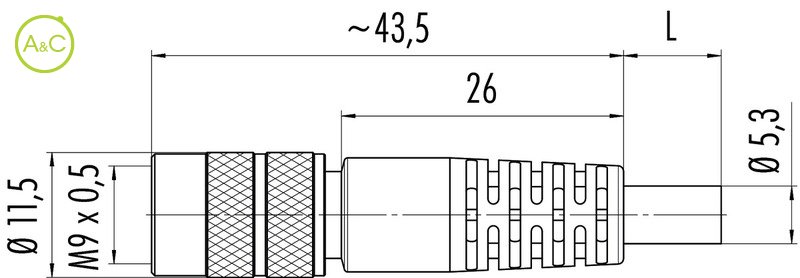

Female cable connector

Moulded, shielded

79-1402-12-02

79-1402-12-02

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

2
3
4
5
7
8

Article Number	79 1402 12 02	79 1402 15 02
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	2 contacts	2 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1406 12 03	79 1406 15 03
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1410 12 04	79 1410 15 04
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1414 12 05	79 1414 15 05
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1422 12 07	79 1422 15 07
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	7 contacts	7 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	79 1426 12 08	79 1426 15 08
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
