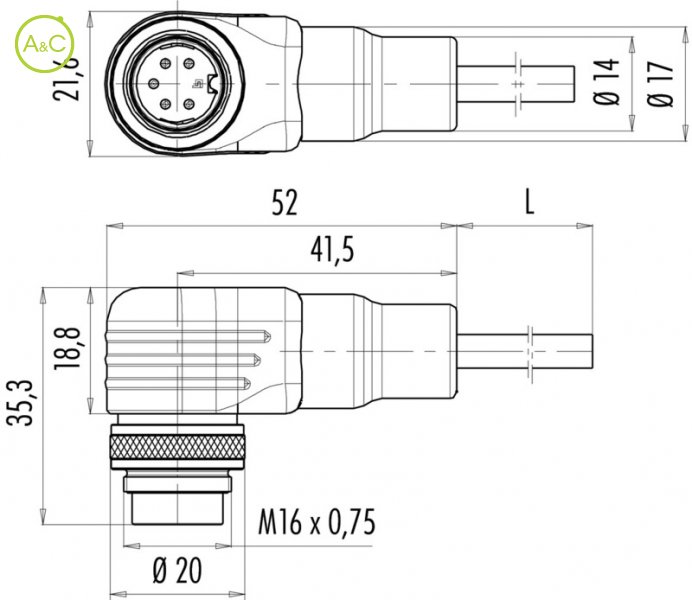

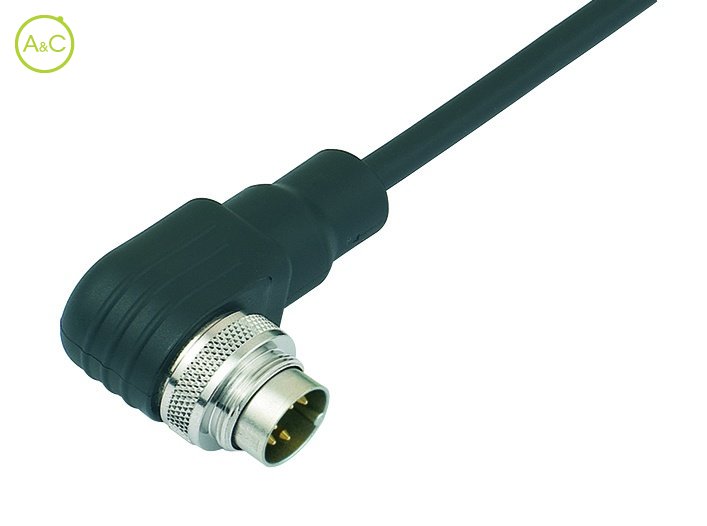

Male angled connector

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

Article Number	79 6213 200 05
Connector Diameter	20 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Solder, moulded
Wire Section	5 x 0,25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	5 mm
Remark *	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Datenblatt	Download Datenblatt

Article Number	79 6271 200 08
Connector Diameter	20 mm
Number Of Contacts	8 DIN contacts
Connector Locking System	Screw (M16)
Termination	Solder, moulded
Wire Section	8 x 0,25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60 (32)
Rated Impuls Voltage	500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	5,7 mm
Remark *	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Datenblatt	Download Datenblatt

Article Number	79 6229 200 12
Connector Diameter	20 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M16)
Termination	Solder, moulded
Wire Section	12 x 0,25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60 (32)
Rated Impuls Voltage	500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	7 mm
Remark *	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Datenblatt	Download Datenblatt

Article Number	79 6251 200 14
Connector Diameter	20 mm
Number Of Contacts	14 contacts
Connector Locking System	Screw (M16)
Termination	Solder, moulded
Wire Section	8 x 0,25 / 2 x 0,5 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60 (32)
Rated Impuls Voltage	500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	8 mm
Remark *	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
