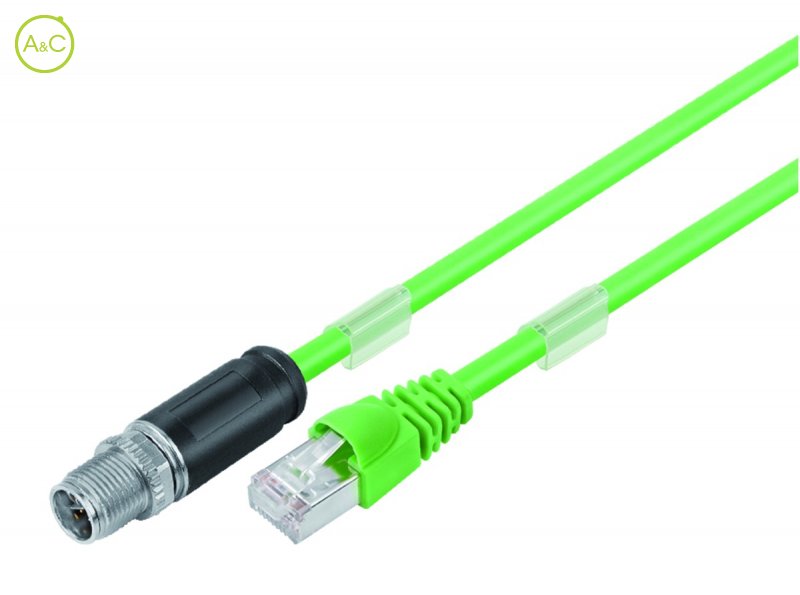

Connecting cable, male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 8
| Article Number | 79 9723 020 08 | 79 9723 050 08 | 79 9723 100 08 |
| Connector Diameter | 14.5 mm | 14.5 mm | 14.5 mm |
| Number Of Contacts | 8 contacts | 8 contacts | 8 contacts |
| Connector Locking System | Screw (M12-X) | Screw (M12-X) | Screw (M12-X) |
| Termination | Crimp, moulded | Crimp, moulded | Crimp, moulded |
| Protection Degree | IP67 | IP67 | IP67 |
| Mating Cycles | >100 times | >100 times | >100 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 50 AC, 60 DC | 50 AC, 60 DC | 50 AC, 60 DC |
| Pollution Degree | 3 | 3 | 3 |
| Overvoltage Categorie | II | II | II |
| Material Group | II | II | II |
| Rated Current (40°) | 0.5 A | 0.5 A | 0.5 A |
| Max. Contact Resistance | 10 mΩ | 10 mΩ | 10 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA | PA |
| Material Of Housing | PUR | PUR | PUR |
| Cable Diameter | 6,2 mm | 6,2 mm | 6,2 mm |
| Cable Jacket Material | PUR green | PUR green | PUR green |
| Insulation Wire | PE | PE | PE |
| Datenblatt | Download Datenblatt | Download Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
