Adapter cases

  • parts as single parts
Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25

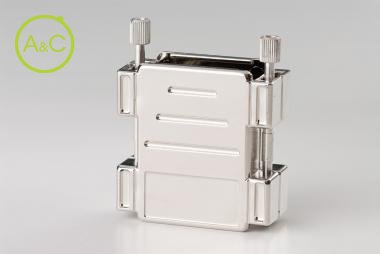

Article Number 8709 4M 000 8709 4B 000
Number Of Contacts 9 9
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Plating Nickel plated copper Nickel plated copper
Remark *** For a fastening screw with thread M3 replace the 4 by a 3 For a fastening screw with thread M3 replace the 4 by a 3
Material ABS ABS
Extra Information Quick mounting by pressing the two adapter parts HF-proof case construction Large interiour space for wiring Quick mounting by pressing the two adapter parts HF-proof case construction Large interiour space for wiring
Thread Type UNC 4-40 UNC 4-40
Hood Version Metallized Black
Locking Style Knurled screw Knurled screw
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
55 47 44T
Thumb screw tinned with slot and internal thread in the head, fitting for plastic hoods
55 47 33T
Thumb screw tinned with slot and internal thread in the head, fitting for plastic hoods
8709 P
Fitting connection boards for 1:1 link (pin/socket)
8715 P
Fitting connection boards for 1:1 link (pin/socket)
8725 P
Fitting connection boards for 1:1 link (pin/socket)
87 09 VB
Covering plates
87 15 VB
Covering plates
87 25 VB
Covering plates
87 09 VM
Covering plates
87 15 VM
Covering plates
87 25 VM
Covering plates
