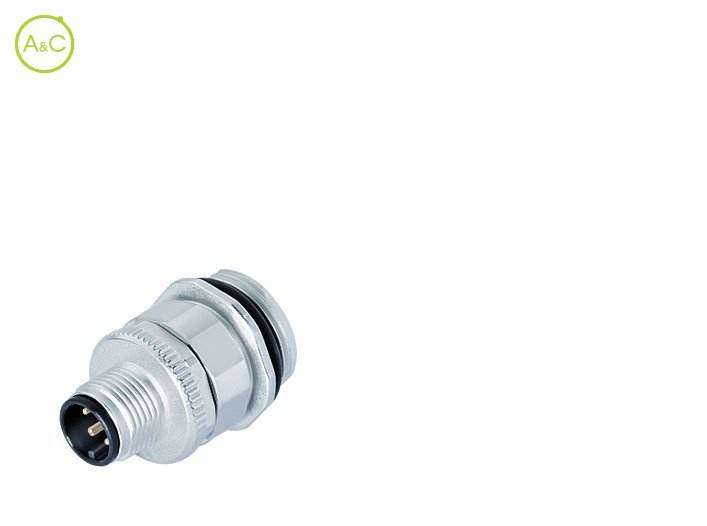

Male panel mount connector

  • Screw clamp connection

Number Of Poles

  • 8
Article Number 86 0431 0003 00008
Old Article Number 99 0381 500 08

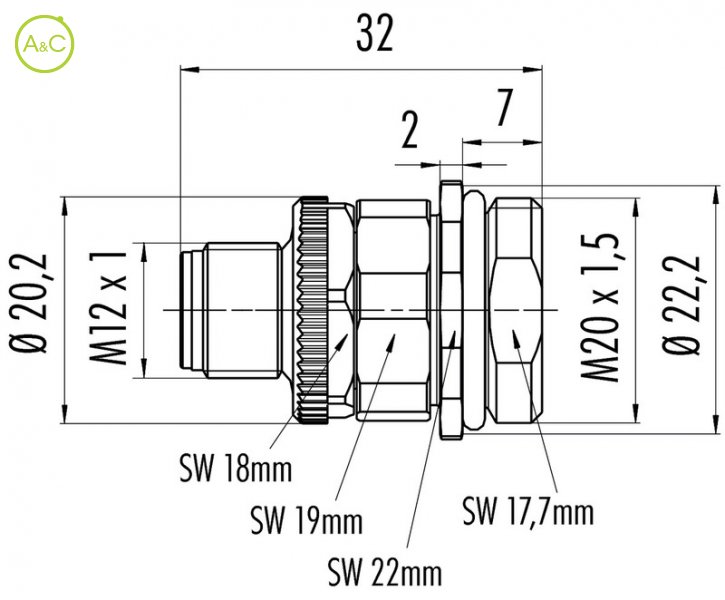

Connector Diameter 20.2 mm
Number Of Contacts 8 contacts
Connector Locking System Screw (M12-A)
Termination Screw clamp
Wire Section 0.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 30
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 1.5 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated
Fixing Thread M20 x 1,5
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
